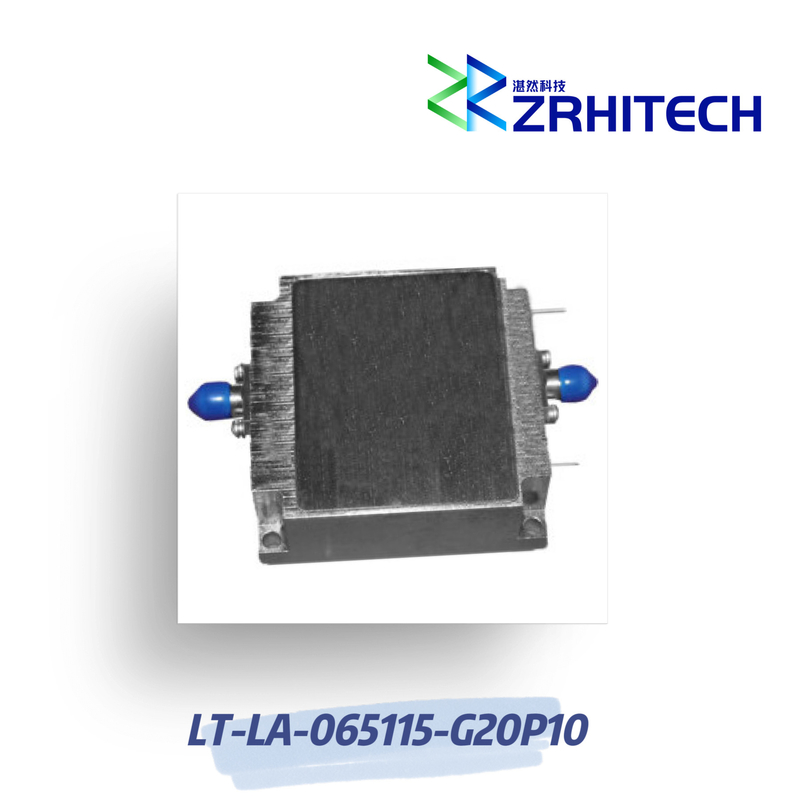

6.5 to 11.5 GHz 10dBm Low Noise Amplifier with 20 dB Small Signal Gain
-
Highlight
20 dB Low Noise Amplifier
,10dBm Low Noise Amplifier
,11.5 GHz Low Noise Amplifier
-
Place of OriginCHINA
-
Brand NameZR Hi-tech
-
Model NumberLT-LA-065115-G20P10
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T
6.5 to 11.5 GHz 10dBm Low Noise Amplifier with 20 dB Small Signal Gain
6.5 to 11.5 GHz 10dBm Low Noise Amplifier with 20 dB Small Signal Gain
Quick Detail:
- Aluminum Housing
- Customizable Frequency
- -40℃~+70℃ Operating Temperature
- Small Signal Gain 20dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-LA-065115-G20P10 from ZR is a RF Amplifier with frequency range of 6.5 to 11.5 GHz, featuring 20 dB small signal gain, ±2.0 dB gain flatness, 10dBm output power, and 15 dBm input power.
Specifications:
Electrical / Optical Characteristics (Ta=25℃ ±3℃)
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-065115-G20P10 | |
| Configuration | Module with Connector | |
| Frequency Range | 6.5 to 11.5 GHz | |
| Small Signal Gain | 20 dB | |
| Gain Flatness | ±2.0 dB | |
| Output Power | 10 dBm | |
| Input Power | 15 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 150 mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimension | 35x35x16 mm |
Note: for custom specifications, please contact us directly.
Outline Drawing (Unit: mm):
