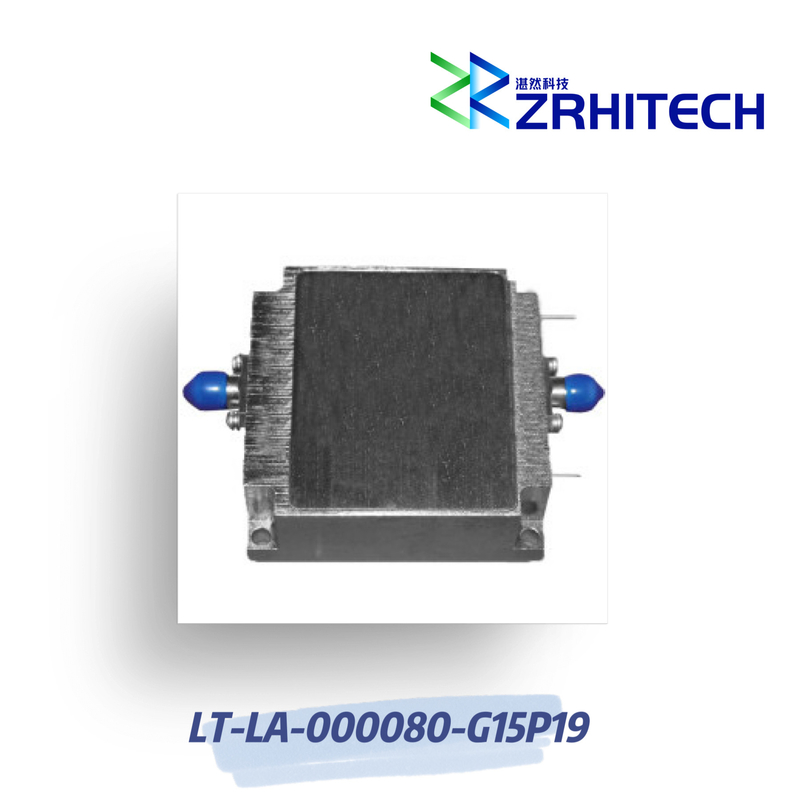

0.02 to 8 GHz 19dBm Output Power Low Noise Amplifier with 15 dB Small Signal Gain
-
Highlight
8 GHz Low Noise Amplifier
,19dBm Output Power Low Noise Amplifier
-
Place of OriginCHINA
-
Brand NameZR Hi-tech
-
Model NumberLT-LA-000080-G15P19
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T
0.02 to 8 GHz 19dBm Output Power Low Noise Amplifier with 15 dB Small Signal Gain
0.02 to 8 GHz 19dBm Output Power Low Noise Amplifier with 15 dB Small Signal Gain
Quick Details
- Aluminum housing for durability
- Customizable frequency options available
- Wide operating temperature range: -40℃ to +70℃
- 15dB small signal gain
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Description
The LT-LA-000080-G15P19 from ZR is a high-performance RF amplifier featuring a broad frequency range from 0.02 to 8 GHz. This power amplifier delivers consistent performance with 15 dB small signal gain, ±2.5 dB gain flatness, and 19dBm output power.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-000080-G15P19 | |
| Configuration | Module with Connector | |
| Frequency Range | 0.02 to 8 GHz | |
| Small Signal Gain | 15 dB | |
| Gain Flatness | ±2.5 dB | |
| Output Power | 19 dBm | |
| Input Power | 10 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 100 mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 35x35x16 mm |
Note: Contact us directly for custom specifications.
