10dBm Low Noise Amplifier with 35 dB Small Signal Gain Perfect for 18 to 26.5 GHz
10dBm Low Noise Amplifier with 35 dB Small Signal Gain Perfect for 18 to 26.5 GHz
18 to 26.5 GHz LT-LA Series Power Amplifier
Key Features:
- Aluminum housing for durability
- Customizable frequency options available
- Wide operating temperature range: -40℃ to +70℃
- 35dB small signal gain
- Compliant with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Description:

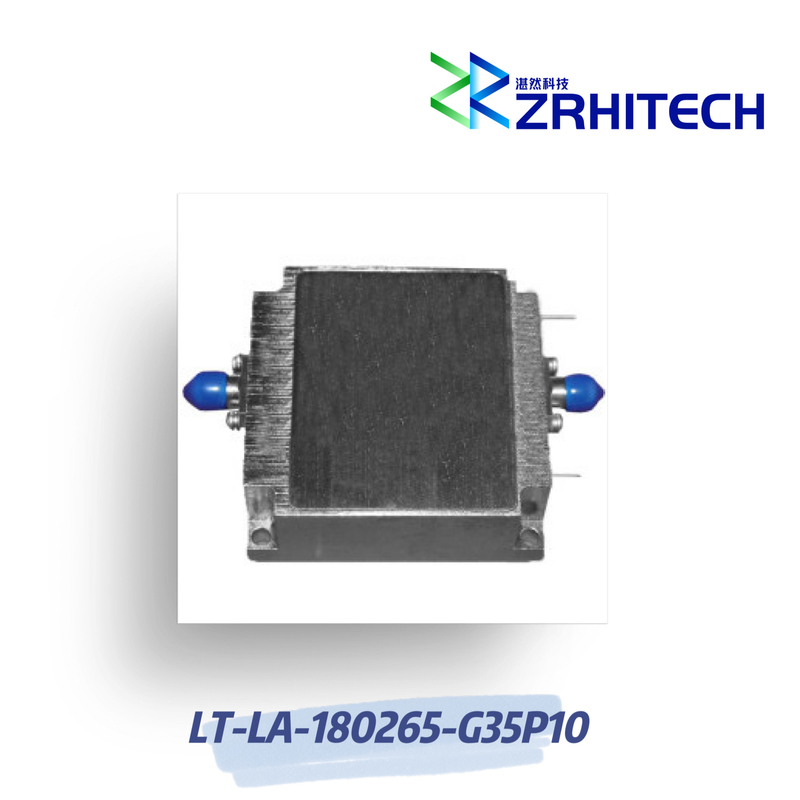

The LT-LA-180265-G35P10 from ZR is a high-performance RF amplifier operating in the 18 to 26.5 GHz frequency range. This power amplifier features a 35 dB small signal gain with ±2.0 dB gain flatness, delivering 10dBm output power with 15 dBm input power capability.
Technical Specifications:
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-180265-G35P10 | |
| Configuration | Module with Connector | |
| Frequency Range | 18 to 26.5 GHz | |
| Small Signal Gain | 35 dB | |
| Gain Flatness | ±2.0 dB | |
| Output Power | 10 dBm | |
| Input Power | 15 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 250 mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 50x50x16 mm |
Note: Custom specifications available upon request. Please contact us for details.
