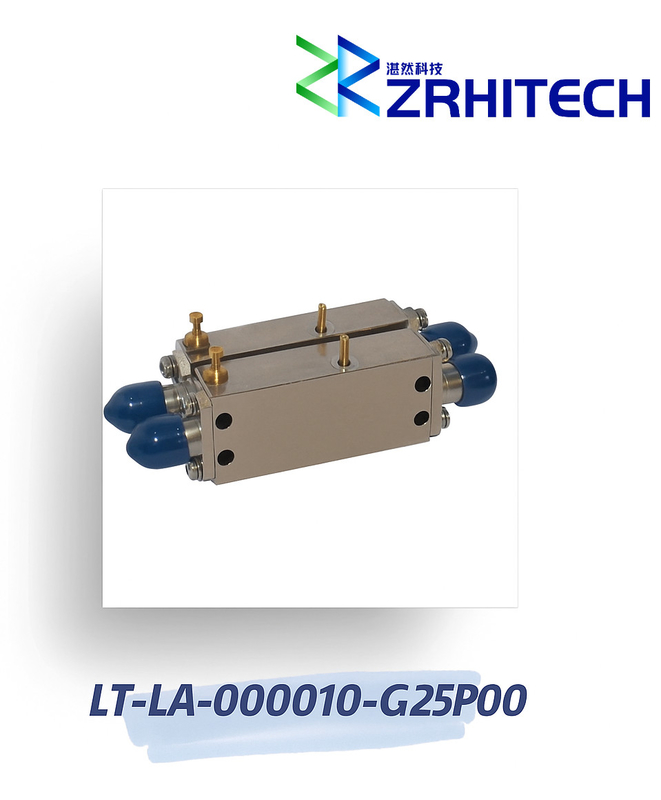

0.02 to 1 GHz 0dBm Low Noise Amplifier with 25 dB Small Signal Gain
-
Place of OriginCHINA
-
Brand NameZR Hi-tech
-
Model NumberLT-LA-000010-G25P0
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T
0.02 to 1 GHz 0dBm Low Noise Amplifier with 25 dB Small Signal Gain
0.02 to 1 GHz 0dBm Low Noise Amplifier with 25 dB Small Signal Gain
Quick Features
- Aluminum housing for durability
- Customizable frequency options
- Wide operating temperature range: -40℃ to +70℃
- 25dB small signal gain
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Overview
The LT-LA-000010-G25P0 from ZR is a high-performance RF amplifier operating in the 0.02 to 1 GHz frequency range. This module features 25 dB small signal gain with ±1.5 dB gain flatness, delivering 0dBm output power with 10 dBm input power.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-000010-G25P0 | |
| Configuration | Module with Connector | |
| Frequency Range | 0.02 to 1 GHz | |
| Small Signal Gain | 25 dB | |
| Gain Flatness | ±1.5 dB | |
| Output Power | 0 dBm | |
| Input Power | 10 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 200 mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 40×25×12 mm |
Note: Contact us directly for custom specifications.

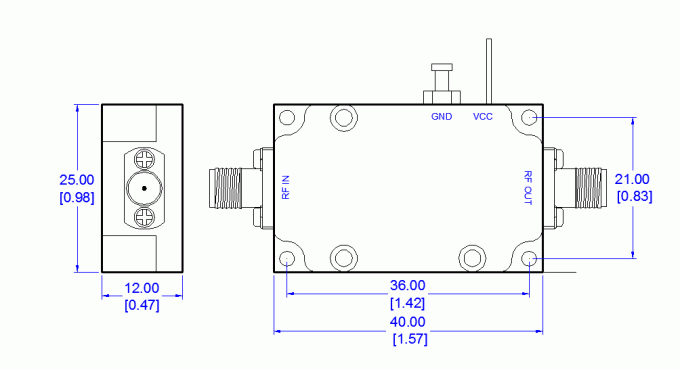

Outline Drawing
