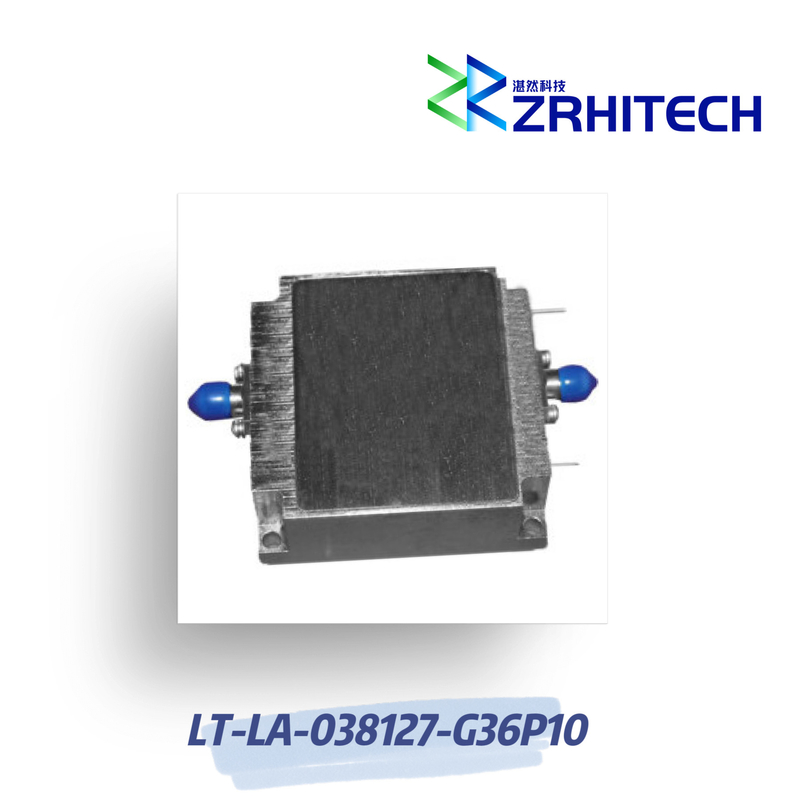

3.8 to 12.75 GHz 10dBm Low Noise Amplifier with 36 dB Small Signal Gain
-
Highlight
10dBm Low Noise Amplifier
,36 dB Low Noise Amplifier
,12.75 GHz Low Noise Amplifier
-
Place of OriginCHINA
-
Brand NameZR Hi-tech
-
Model NumberLT-LA-038127-G36P10
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T
3.8 to 12.75 GHz 10dBm Low Noise Amplifier with 36 dB Small Signal Gain
3.8 to 12.75 GHz LT-LA Series Power Amplifier
Quick Detail:
· Aluminum Housing
· Customizable Frequency
· -40℃~+70℃ Operating Temperature
· Small Signal Gain 36dB
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-LA-038127-G36P10 from ZR is a RF Amplifier with Frequency 3.8 to 12.75 GHz, Small Signal Gain 36 dB, Gain Flatness ±2.5 dB, Output Power 10dBm, Input Power 5 dBm. Tags: Power Amplifier. More details for LT-LA-038127-G36P10 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
|
Items |
Specification |
Conditions |
|
Part Number |
LT-LA-038127-G36P10 |
|
|
Configuration |
Module with Connector |
|
|
Frequency Range |
3.8 to 12.75 GHz |
|
|
Small Signal Gain |
36 dB |
|
|
Gain Flatness |
±2.5 dB |
|
|
Output Power |
10 dBm |
|
|
Input Power |
5 dBm |
|
|
VSWR |
2.45:1 |
|
|
Power Supply |
+12V / 300 mA |
|
|
Operating Temperature |
-40 to +70 ℃ |
|
|
Dimension |
35x35x16 mm |
|
|
Note: for custom specs, please contact us directly. |
||
Outline Drawing (Unit: mm):
