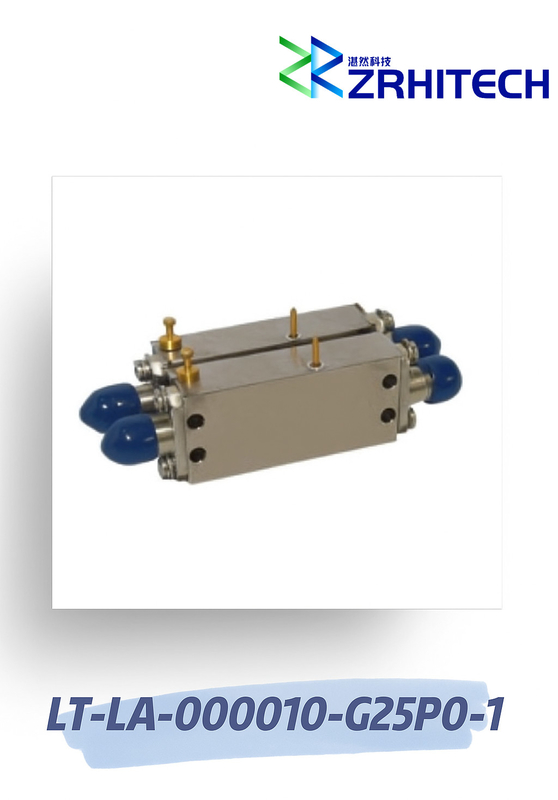

0.01 to 1 GHz 0dBm Low Noise Amplifier with 25 dB Small Signal Gain

Name: 0.01 to 1 GHz 0dBm Low Noise Amplifier with 25 dB Small Signal Gain
Brand: Sichuan ZR Hi-Tech Ltd.
SKU: LT-LA-000010-G25P0-1
Availability: InStock

Brand Name:	ZR Hi-tech
Model Number:	LT-LA-000010-G25P0-1
MOQ:	1
Delivery Time:	4 weeks
Payment Terms:	D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Document:

Product Brochure PDF

Packaging Details:

carton packing

Product Description

0.01 to 1 GHz 0dBm Low Noise Amplifier with 25 dB Small Signal Gain

LT-LA Series Power Amplifier

Key Features:

Aluminum housing for durability
Customizable frequency options available
Wide operating temperature range: -40℃ to +70℃
25dB small signal gain
Compliance with CE, RoHS, and REACH standards
1-year manufacturer warranty

Product Description

The LT-LA-000010-G25P0-1 from ZR is a high-performance RF amplifier operating in the 0.01 to 1 GHz frequency range. This module features a consistent 25 dB small signal gain with ±1.5 dB flatness, delivering 0dBm output power with 10 dBm input power capability.

Technical Specifications

Parameter	Specification	Conditions
Part Number	LT-LA-000010-G25P0-1
Configuration	Module with Connector
Frequency Range	0.01 to 1 GHz
Small Signal Gain	25 dB
Gain Flatness	±1.5 dB
Output Power	0 dBm
Input Power	10 dBm
VSWR	2.0:1
Power Supply	+12V / 200 mA
Operating Temperature	-40 to +70 ℃
Dimensions	40×25×12 mm

Note: Custom specifications available upon request. Please contact us for tailored solutions.

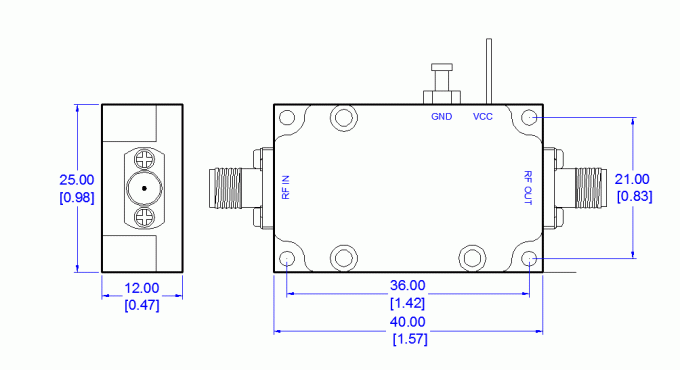

Outline Drawing
