18 to 40 GHz 0dBm Low Noise Amplifier with 20 dB Small Signal Gain
-
Highlight
20 dB Low Noise Amplifier
,0dBm Low Noise Amplifier
-
Place of OriginCHINA
-
Brand NameZR Hi-tech
-
Model NumberLT-LA-180400-G20P0
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T

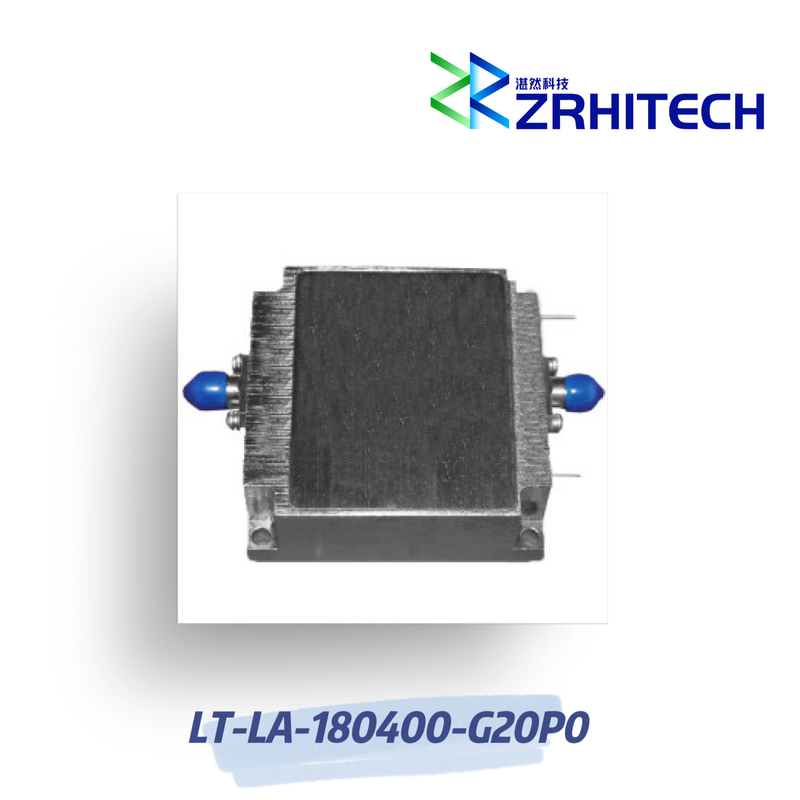

18 to 40 GHz 0dBm Low Noise Amplifier with 20 dB Small Signal Gain
18 to 40 GHz 0dBm Low Noise Amplifier with 20 dB Small Signal Gain
Quick Detail:
- Aluminum Housing
- Customizable Frequency
- -40℃~+70℃ Operating Temperature
- Small Signal Gain 20dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-LA-180400-G20P0 from ZR is a high-performance RF amplifier operating from 2.2 to 2.3 GHz frequency range. This power amplifier features 20 dB small signal gain with ±4.0 dB gain flatness, delivering 0dBm output power at 10 dBm input power.
Specifications:
Electrical/Optical Characteristics (Ta=25℃ ±3℃)
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-180400-G20P0 | |
| Configuration | Module with Connector | |
| Frequency Range | 2.2 to 2.3 GHz | |
| Small Signal Gain | 20 dB | |
| Gain Flatness | ±4.0 dB | |
| Output Power | 0 dBm | |
| Input Power | 10 dBm | |
| VSWR | 2.5:1 | |
| Power Supply | +12V / 800 mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimension | 50x50x16 mm |
Note: for custom specifications, please contact us directly.
Outline Drawing (Unit: mm):
