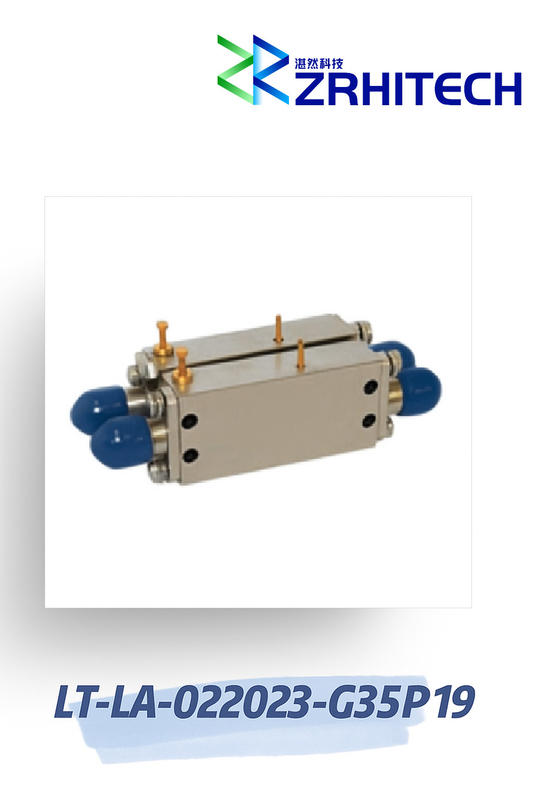

2.2 to 2.3 GHz 19dBm Low Noise Amplifier with 35 dB Small Signal Gain

Name: 2.2 to 2.3 GHz 19dBm Low Noise Amplifier with 35 dB Small Signal Gain
Brand: Sichuan ZR Hi-Tech Ltd.
SKU: LT-LA-022023-G35P19
Availability: InStock

Brand Name:	ZR Hi-tech
Model Number:	LT-LA-022023-G35P19
MOQ:	1
Delivery Time:	4 weeks
Payment Terms:	D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Document:

Product Brochure PDF

Packaging Details:

carton packing

Product Description

2.2 to 2.3 GHz 19dBm Low Noise Amplifier with 35 dB Small Signal Gain

Quick Detail:

Aluminum Housing
Customizable Frequency
-10℃~+50℃ Operating Temperature
Small Signal Gain 35dB
CE, RoHS, REACH compliant
1 Year Warranty

Description:

The LT-LA-022023-G35P19 from ZR is a RF Amplifier with Frequency 2.2 to 2.3 GHz, Small Signal Gain 35 dB, Gain Flatness ±2.0 dB, Output Power 19dBm, Input Power 10 dBm. Tags: Power Amplifier.

Specifications:

Electrical / Optical Characteristics (Ta=25℃ ±3℃)

Items	Specification	Conditions
Part Number	LT-LA-022023-G35P19
Configuration	Module with Connector
Frequency Range	2.2 to 2.3 GHz
Small Signal Gain	35 dB
Gain Flatness	±2.0 dB
Output Power	19 dBm
Input Power	10 dBm
VSWR	1.5:1
Power Supply	+12V / TBD mA
Operating Temperature	-10 to +50 ℃
Dimension	60x41x30 mm

Note: for custom specs, please contact us directly.

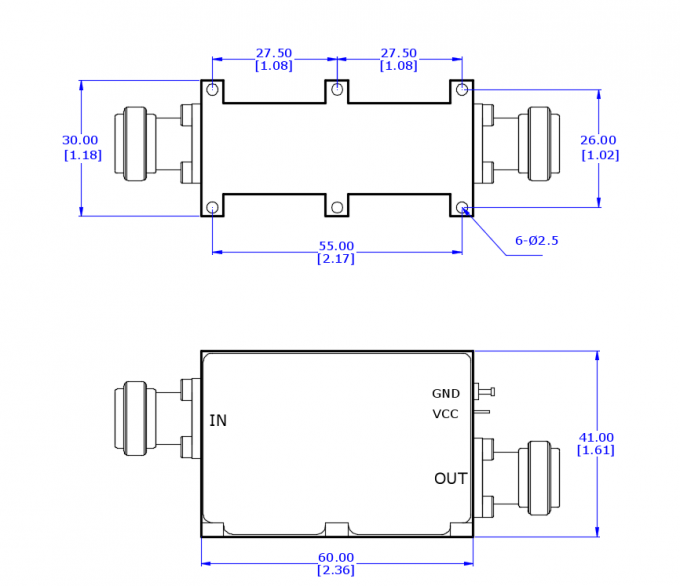

Outline Drawing (Unit: mm):
