15 dB Small Signal Gain 10dBm Low Noise Amplifier for 9.3 to 12.8 GHz
-
Highlight
10dBm Low Noise Amplifier
,15 dB Low Noise Amplifier
-
Place of OriginCHINA
-
Brand NameZR Hi-tech
-
Model NumberLT-LA-093128-G15P10
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T
15 dB Small Signal Gain 10dBm Low Noise Amplifier for 9.3 to 12.8 GHz
15 dB Small Signal Gain 10dBm Low Noise Amplifier for 9.3 to 12.8 GHz
9.3 to 12.8 GHz LT-LA Series Power Amplifier
Key Features
- Aluminum housing for durability
- Customizable frequency options available
- Wide operating temperature range: -20℃ to +85℃
- 15dB small signal gain
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Description

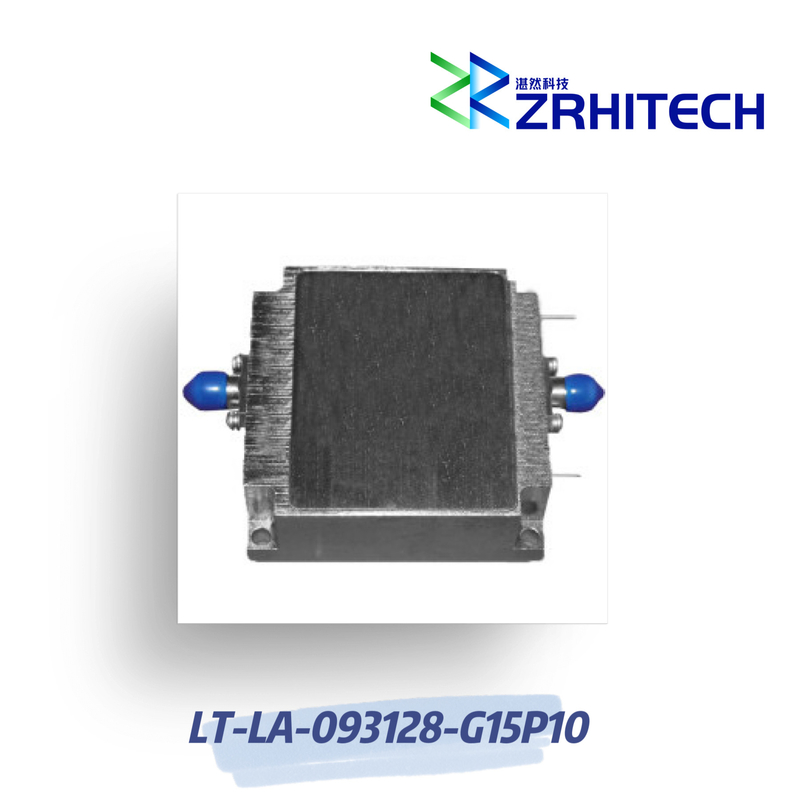

The LT-LA-093128-G15P10 from ZR is a high-performance RF amplifier operating in the 9.3 to 12.8 GHz frequency range. This power amplifier features a 15 dB small signal gain with ±1.0 dB gain flatness and delivers 10dBm output power.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-093128-G15P10 | |
| Configuration | Module with Connector | |
| Frequency Range | 9.3 to 12.8 GHz | |
| Small Signal Gain | 15 dB | |
| Gain Flatness | ±1.0 dB | |
| Output Power | 10 dBm | |
| Input Power | 10 dBm | |
| VSWR | 1.57:1 | |
| Power Supply | +12V / 500 mA | |
| Operating Temperature | -20 to +85 ℃ | |
| Dimensions | 35×35×16 mm |
Note: Custom specifications are available upon request. Please contact us directly for tailored solutions.
Outline Drawing
