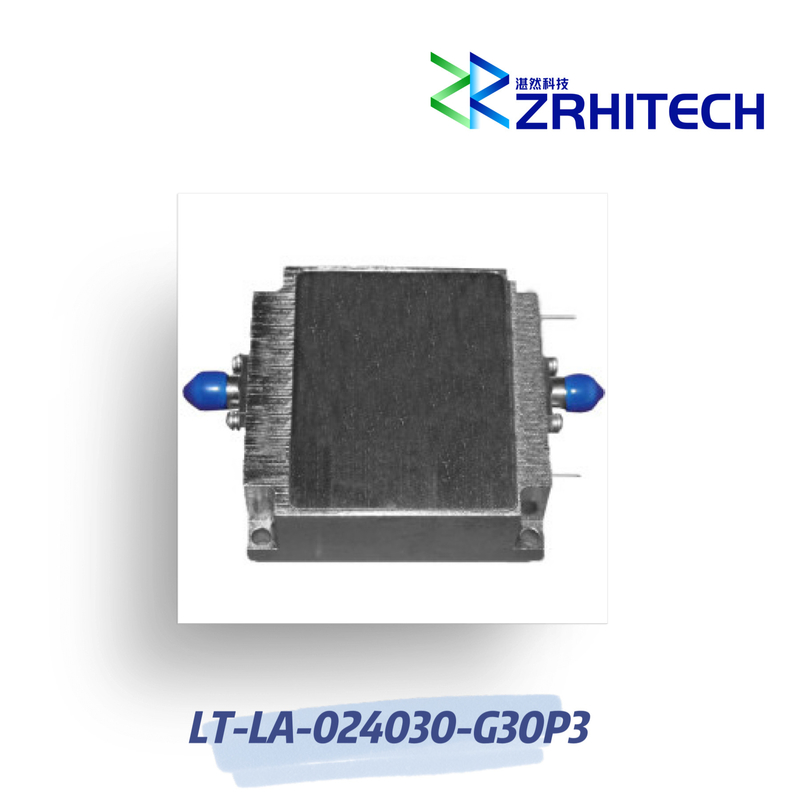

3dBm Low Noise Amplifier with 30 dB Small Signal Gain 2.4 to 3 GHz
-
Highlight
3dBm Low Noise Amplifier
,30 dB Low Noise Amplifier
-
Place of OriginCHINA
-
Brand NameZR Hi-tech
-
Model NumberLT-LA-024030-G30P3
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T
3dBm Low Noise Amplifier with 30 dB Small Signal Gain 2.4 to 3 GHz
3dBm Low Noise Amplifier with 30 dB Small Signal Gain 2.4 to 3 GHz
2.4 to 3 GHz LT-LA Series Power Amplifier
Key Features:
- Aluminum housing for durability
- Customizable frequency options available
- Wide operating temperature range: -40℃ to +70℃
- 30dB small signal gain
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Overview:
The LT-LA-024030-G30P3 from ZR is a high-performance RF amplifier operating in the 2.4 to 3 GHz frequency range. This module features a 30 dB small signal gain with ±1.5 dB gain flatness, delivering 3dBm output power with 15 dBm input power capability.
Technical Specifications:
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-024030-G30P3 | |
| Configuration | Module with Connector | |
| Frequency Range | 2.4 to 3 GHz | |
| Small Signal Gain | 30 dB | |
| Gain Flatness | ±1.5 dB | |
| Output Power | 3 dBm | |
| Input Power | 15 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +15V / TBD mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 35×35×16 mm |
Note: Custom specifications available upon request. Please contact us for details.
Outline Drawing:
