8 GHz Low Noise Amplifier
,4 GHz Low Noise Amplifier
-
Place of OriginCHINA
-
Brand NameZR Hi-tech
-
Model NumberLT-LA-040080-G45P10
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T
4 to 8 GHz 10dBm Low Noise Amplifier with 45 dB Small Signal Gain
4 to 8 GHz 10dBm Low Noise Amplifier with 45 dB Small Signal Gain
LT-LA Series Power Amplifier
Key Features:
- Aluminum housing for durability
- Customizable frequency options
- Wide operating temperature range: -40℃ to +70℃
- 45dB small signal gain
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Description:

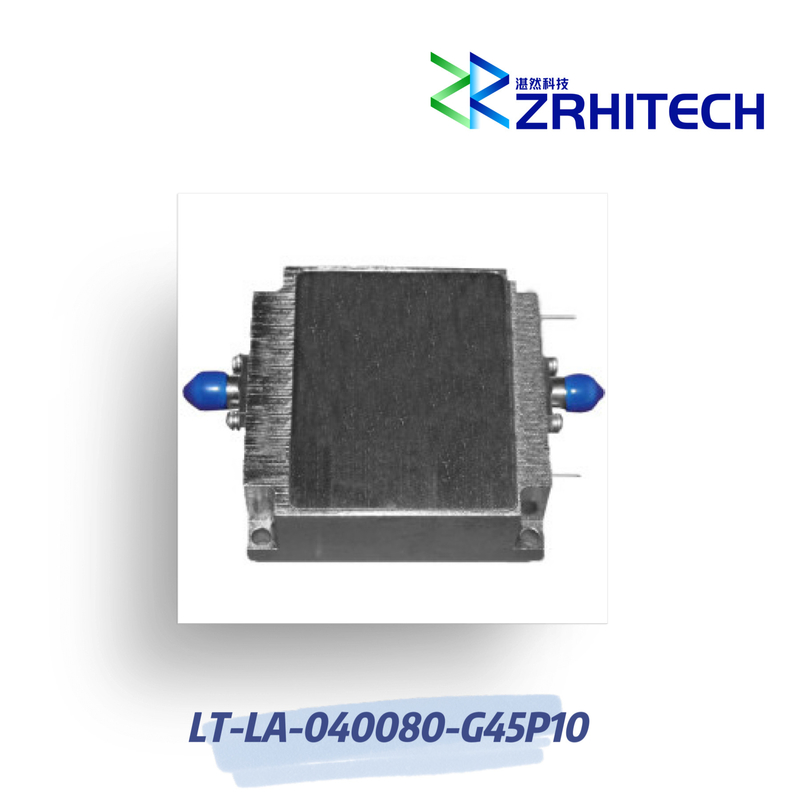

The LT-LA-040080-G45P10 from ZR is a high-performance RF amplifier operating in the 4 to 8 GHz frequency range. This module features a 45 dB small signal gain with ±1.5 dB gain flatness and delivers 10dBm output power.
Technical Specifications:
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-040080-G45P10 | |
| Configuration | Module with Connector | |
| Frequency Range | 4 to 8 GHz | |
| Small Signal Gain | 45 dB | |
| Gain Flatness | ±1.5 dB | |
| Output Power | 10 dBm | |
| Input Power | 10 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / TBD mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 50x50x16 mm |
Note: Custom specifications available upon request. Please contact us for details.
Outline Drawing:
