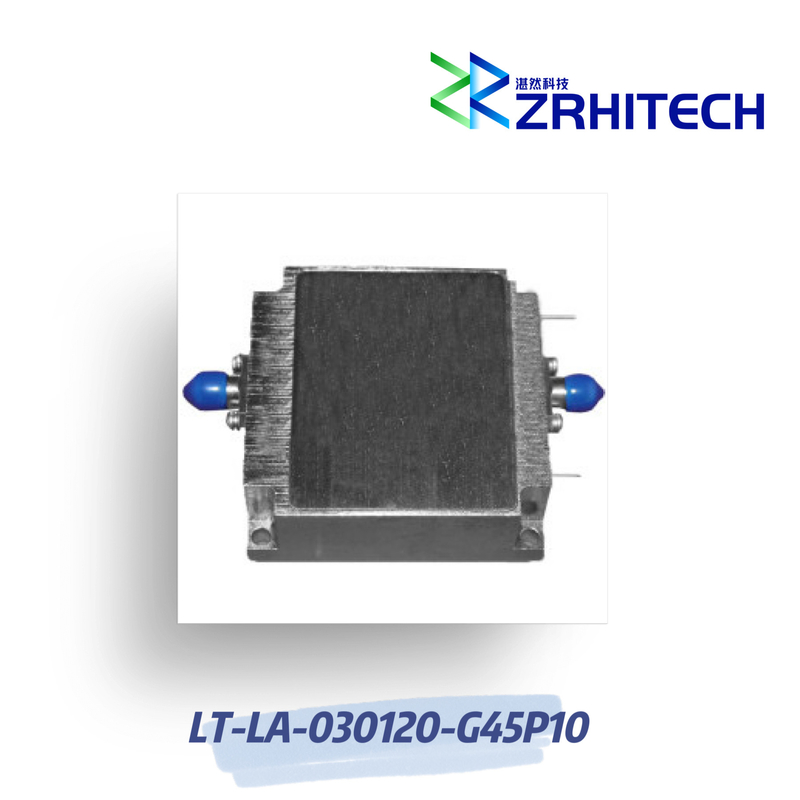

Small Signal Gain 45 dB 3 to 12 GHz Low Noise Amplifier with 10dBm Output
-
Highlight
10dBm Low Noise Amplifier
,45 dB Low Noise Amplifier
-
Place of OriginCHINA
-
Brand NameZR Hi-tech
-
Model NumberLT-LA-030120-G45P10
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T
Small Signal Gain 45 dB 3 to 12 GHz Low Noise Amplifier with 10dBm Output
Small Signal Gain 45 dB 3 to 12 GHz Low Noise Amplifier with 10dBm Output
3 to 12 GHz LT-LA Series Power Amplifier
Key Features
- Aluminum housing for durability
- Customizable frequency options available
- Wide operating temperature range: -40℃ to +70℃
- Small signal gain of 45dB
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Description
The LT-LA-030120-G45P10 from ZR is a high-performance RF amplifier operating in the 3 to 12 GHz frequency range. This power amplifier features a small signal gain of 45 dB with ±2.0 dB gain flatness, delivering 10dBm output power with 10 dBm input power.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-030120-G45P10 | |
| Configuration | Module with Connector | |
| Frequency Range | 3 to 12 GHz | |
| Small Signal Gain | 45 dB | |
| Gain Flatness | ±2.0 dB | |
| Output Power | 10 dBm | |
| Input Power | 10 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / TBD mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 50x50x16 mm |
Note: Custom specifications are available upon request. Please contact us directly for tailored solutions.
Outline Drawing
