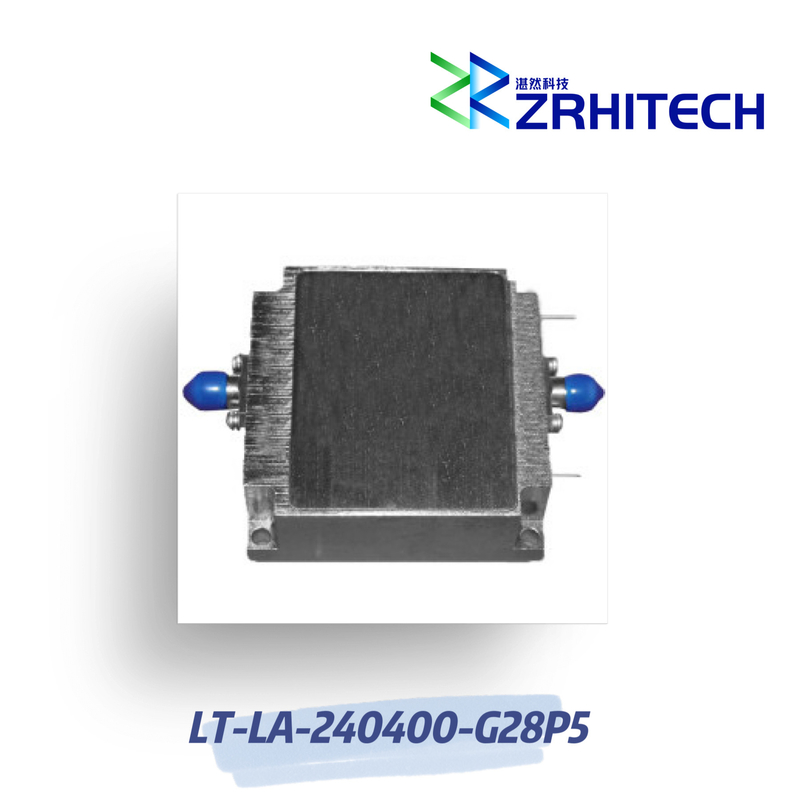

24 to 40 GHz 5dBm Low Noise Amplifier with 28 dB Small Signal Gain
-
Highlight
28 dB Low Noise Amplifier
,5dBm Low Noise Amplifier
-
Place of OriginCHINA
-
Brand NameZR Hi-tech
-
Model NumberLT-LA-240400-G28P5
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T
24 to 40 GHz 5dBm Low Noise Amplifier with 28 dB Small Signal Gain
24 to 40 GHz 5dBm Low Noise Amplifier with 28 dB Small Signal Gain
LT-PA Series Power Amplifier
Key Features
- Aluminum housing for durability
- Customizable frequency options available
- Wide operating temperature range: -40℃ to +70℃
- 28dB small signal gain
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Description
The LT-LA-240400-G28P5 from ZR is a high-performance RF amplifier operating in the 24 to 40 GHz frequency range. This module features a 28 dB small signal gain with ±4 dB gain flatness, delivering 5dBm output power with 10 dBm input power capability.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-240400-G28P5 | |
| Configuration | Module with Connector | |
| Frequency Range | 24 to 40 GHz | |
| Small Signal Gain | 28 dB | |
| Gain Flatness | ±4 dB | |
| Output Power | 5 dBm | |
| Input Power | 10 dBm | |
| VSWR | 2.5:1 | |
| Power Supply | +12V / TBD mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 35×35×16 mm |
Note: Custom specifications available upon request. Please contact us for details.
Outline Drawing
