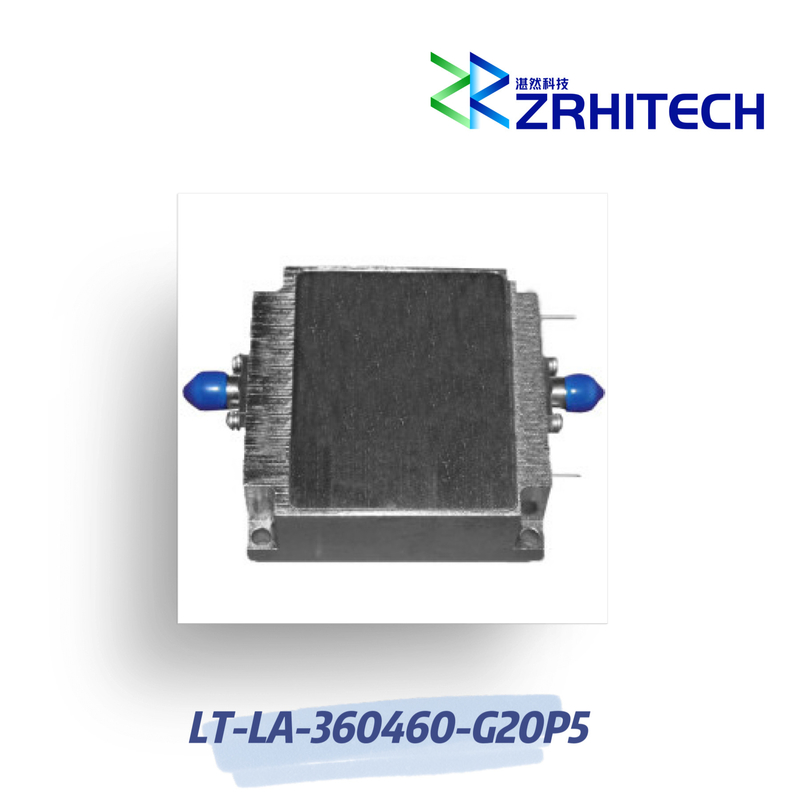

36 to 46 GHz 5dBm Low Phase Noise Amplifier With 20 DB Small Signal Gain
-
Highlight
5dBm Low Phase Noise Amplifier
,36 to 46 GHz Low Phase Noise Amplifier
-
Place of OriginCHINA
-
Brand NameZR Hi-tech
-
Model NumberLT-LA-360460-G20P5
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T
36 to 46 GHz 5dBm Low Phase Noise Amplifier With 20 DB Small Signal Gain
36 to 46 GHz 5dBm Low Phase Noise Amplifier With 20 DB Small Signal Gain
LT-PA Series Power Amplifier
Key Features:
- Aluminum housing for durability
- Customizable frequency options available
- Wide operating temperature range: -40℃ to +70℃
- 20dB small signal gain
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Description:
The LT-LA-360460-G20P5 is a high-performance RF amplifier operating in the 36 to 46 GHz frequency range. This module features 20dB small signal gain with ±1.5dB gain flatness, delivering 5dBm output power with 10dBm input power capability.
Technical Specifications:
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-360460-G20P5 | |
| Configuration | Module with Connector | |
| Frequency Range | 36 to 46 GHz | |
| Small Signal Gain | 20 dB | |
| Gain Flatness | ±1.5 dB | |
| Output Power | 5 dBm | |
| Input Power | 10 dBm | |
| VSWR | 2.5:1 | |
| Power Supply | +12V / TBD mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 35×35×16 mm |
Note: Custom specifications available upon request. Please contact us for details.
Outline Drawing:
