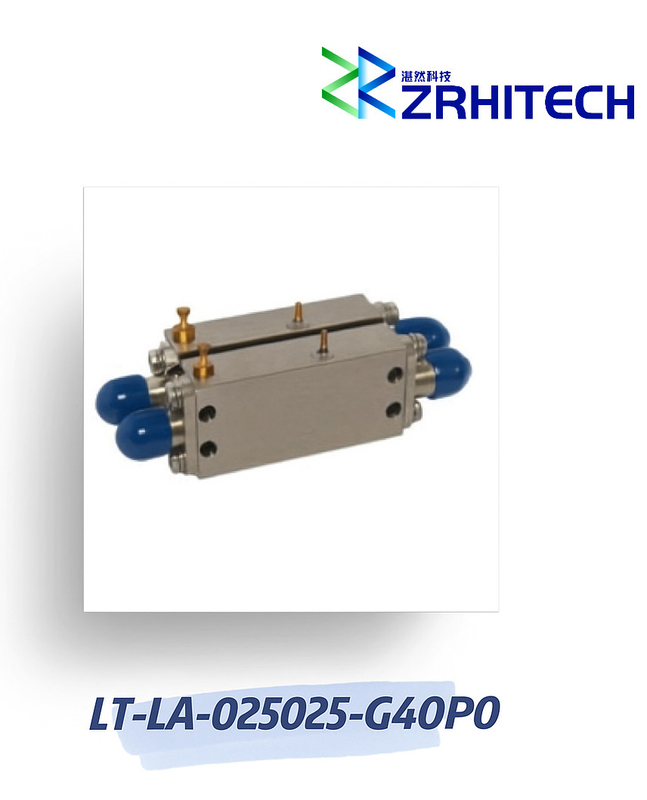

2.5 to 2.57 GHz 0dBm Low Noise Amplifier with 40 dB Small Signal Gain

Name: 2.5 to 2.57 GHz 0dBm Low Noise Amplifier with 40 dB Small Signal Gain
Brand: Sichuan ZR Hi-Tech Ltd.
SKU: LT-LA-025025-G40P0
Availability: InStock

Brand Name:	ZR Hi-tech
Model Number:	LT-LA-025025-G40P0
MOQ:	1
Delivery Time:	4 weeks
Payment Terms:	D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Document:

Product Brochure PDF

Packaging Details:

carton packing

Product Description

2.5 to 2.57 GHz 0dBm Low Noise Amplifier with 40 dB Small Signal Gain

Quick Detail

Aluminum Housing
Customizable Frequency
-40℃~+70℃ Operating Temperature
Small Signal Gain 40dB
CE, RoHS, REACH compliant
1 Year Warranty

Description

The LT-LA-025025-G40P0 from ZR is a high-performance RF Amplifier operating in the 2.5 to 2.57 GHz frequency range. This power amplifier features a 40 dB small signal gain with ±0.5 dB gain flatness, delivering 0dBm output power with 10 dBm input power.

Specifications

Items	Specification	Conditions
Part Number	LT-LA-025025-G40P0
Configuration	Module with Connector
Frequency Range	2.5 to 2.57 GHz
Small Signal Gain	40 dB
Gain Flatness	±0.5 dB
Output Power	0 dBm
Input Power	10 dBm
VSWR	1.8:1
Power Supply	+12V / 300mA
Operating Temperature	-40 to +70 ℃
Dimension	35x35x25.4 mm

Note: for custom specifications, please contact us directly.

Outline Drawing
