RF Low Noise Amplifier
Created with Pixso. 0.7 to 2.6 GHz 0dBm Low Noise Amplifier with 30 dB Small Signal Gain

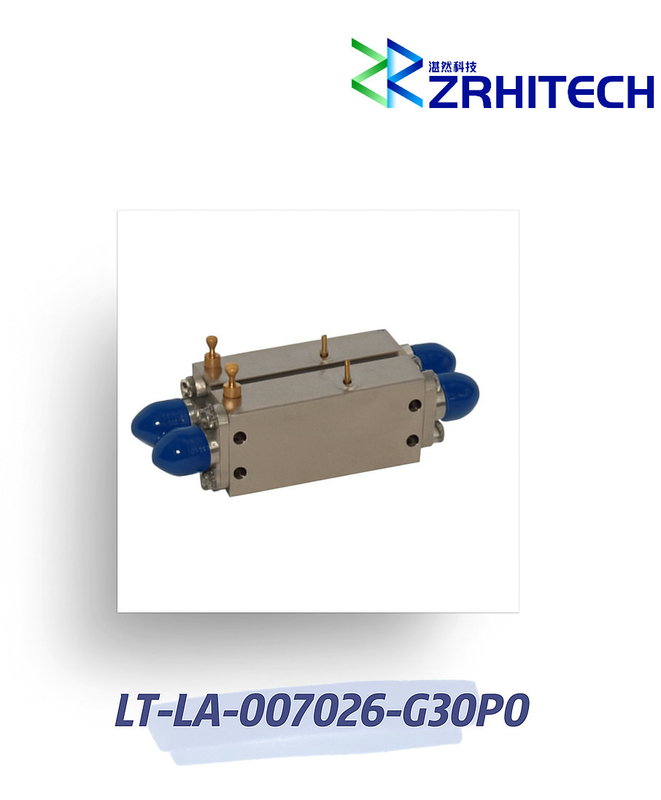

0.7 to 2.6 GHz 0dBm Low Noise Amplifier with 30 dB Small Signal Gain
  • name

0.7 to 2.6 GHz 0dBm Low Noise Amplifier with 30 dB Small Signal Gain

Brand Name: ZR Hi-tech
Model Number: LT-LA-007026-G30P0
MOQ: 1
Delivery Time: 4 weeks
Payment Terms: D/A,D/P,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Document:
Product Brochure PDF
Packaging Details:
carton packing
Product Description
0.7 to 2.6 GHz 0dBm Low Noise Amplifier with 30 dB Small Signal Gain
Product Overview

The LT-LA-007026-G30P0 from ZR is a high-performance RF amplifier operating in the 0.7 to 2.6 GHz frequency range, featuring 30 dB small signal gain and excellent gain flatness of ±1.5 dB.

Key Features
  • Aluminum housing for durability
  • Customizable frequency options available
  • Wide operating temperature range: -40℃ to +70℃
  • Consistent small signal gain of 30dB
  • Compliance with CE, RoHS, and REACH standards
  • Includes 1-year manufacturer warranty
Technical Specifications
Parameter Specification Conditions
Part Number LT-LA-007026-G30P0
Configuration Module with Connector
Frequency Range 0.7 to 2.6 GHz
Small Signal Gain 30 dB
Gain Flatness ±1.5 dB
Output Power 0 dBm
Input Power 5 dBm
VSWR 2.0:1
Power Supply +12V / 200mA
Operating Temperature -40 to +70 ℃
Dimensions 35×35×25.4 mm
Note: Custom specifications available upon request.
Product Dimensions
0.7 to 2.6 GHz 0dBm Low Noise Amplifier with 30 dB Small Signal Gain 0
