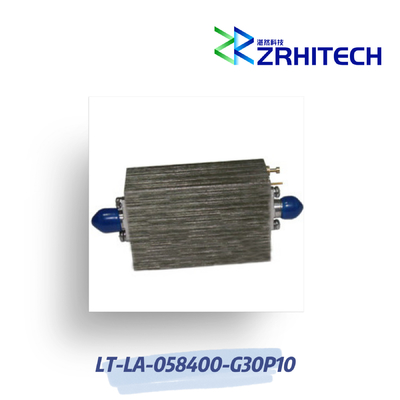

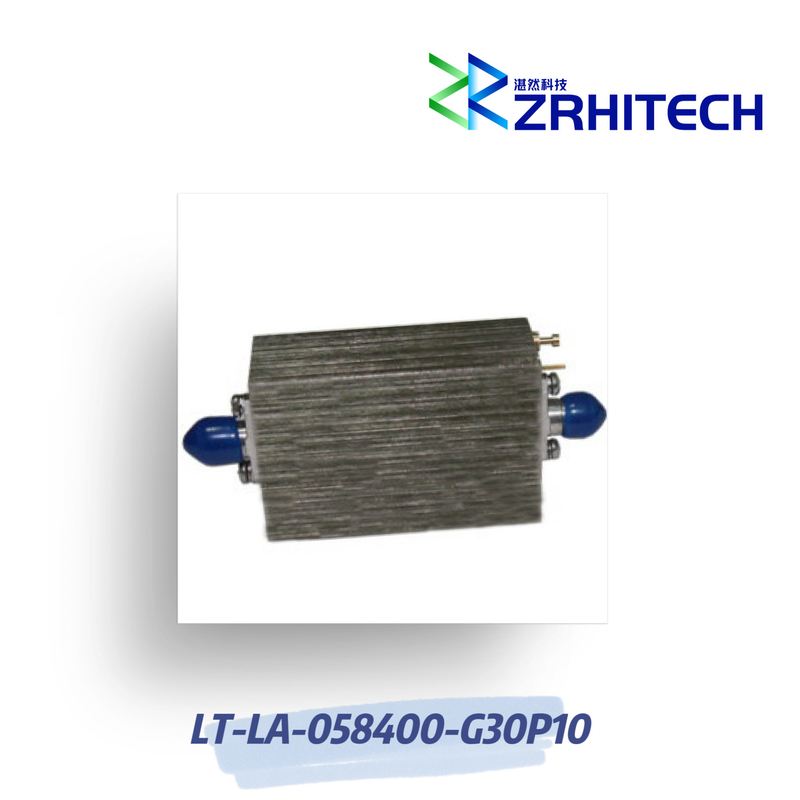

5.8 to 40 GHz 10dBm Low Noise Microwave Amplifier With 30 DB Small Signal Gain
-
Highlight
40 GHz low noise microwave amplifier
,5.8 GHz low noise microwave amplifier
-
Place of OriginCHINA
-
Brand NameZR Hi-tech
-
Model NumberLT-LA-058400-G30P10
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T
5.8 to 40 GHz 10dBm Low Noise Microwave Amplifier With 30 DB Small Signal Gain
5.8 to 40 GHz 10dBm Low Noise Microwave Amplifier With 30 DB Small Signal Gain
LT-PA Series Power Amplifier
Key Features:
- Aluminum housing for durability
- Customizable frequency options available
- Wide operating temperature range: -40℃ to +70℃
- 30dB small signal gain
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Description:
The LT-LA-058400-G30P10 from ZR is a high-performance RF amplifier operating in the 5.8 to 40 GHz frequency range. This power amplifier features a 30 dB small signal gain with ±2.5 dB gain flatness, delivering 10dBm output power with 5 dBm input power.
Technical Specifications:
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-LA-058400-G30P10 | |
| Configuration | Module with Connector | |
| Frequency Range | 5.8 to 40 GHz | |
| Small Signal Gain | 30 dB | |
| Gain Flatness | ±2.5 dB | |
| Output Power | 10 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 200mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimensions | 50×30×15 mm |
Note: Custom specifications available upon request. Please contact us directly for tailored solutions.
Outline Drawing:
