Highlight

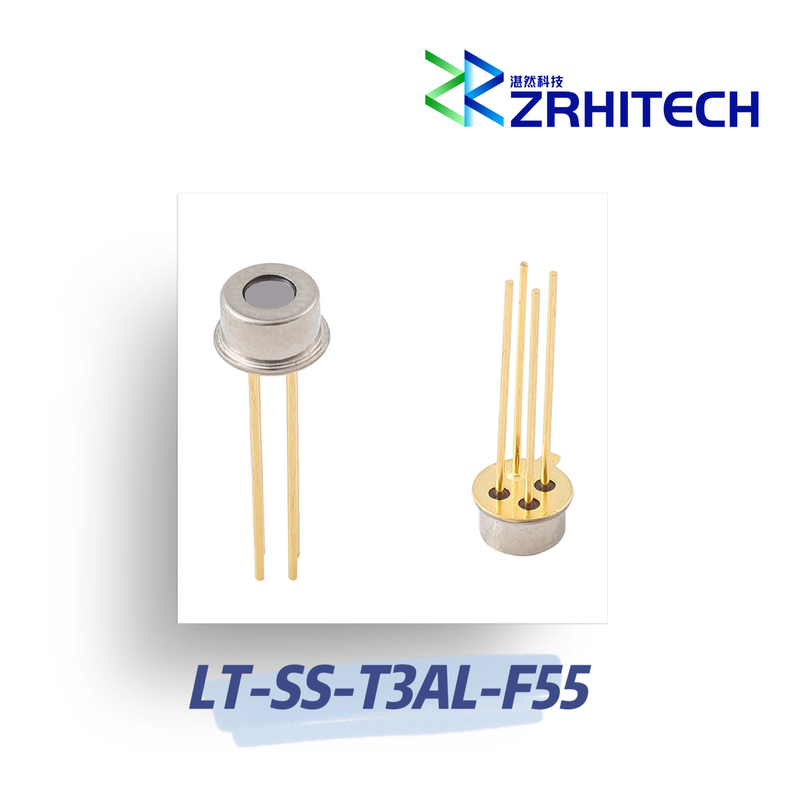

High Precision MEMS Thermoeletric stack sensor
,1.4*1.4mm MEMS Thermoeletric stack sensor
-
FeaturesHigh Infrared Responsiveness, Repeatability And Reliability
-
Product NameMEMS Pressure Sensor
-
MaterialAluminum
-
Operating Temperature-20~85℃
-
ApplicationTemperature Detection
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SS-T3AL-F55
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
1.4*1.4mm High Precision MEMS Thermoeletric stack sensor
1.4×1.4mm High Precision MEMS Thermoelectric Stack Sensor
Product Attributes
| Product name | MEMS Pressure Sensor |
| Features | High infrared responsiveness, repeatability and reliability |
| Material | Aluminum |
| Operating Temperature | -20~85℃ |
| Application | Temperature Detection |
| Color | Silver |
Product Description
LT-SS series high precision MEMS thermoelectric stack sensor
Key Features
- SOP or DIP packaging
- MEMS technology
- Temperature measurement range: -20~+300℃
- I2C interface, supports PWM
- High stability, Operating Temperature -20℃~85℃
- TO-39 package, Viewing Angle 38°
- CE, RoHS, REACH compliant
- 1 Year Warranty
LT-SS-T3AL-F55 is a ZR part number for MEMS thermoelectric stack sensor with 38° viewing angle, high sensitivity, and good stability.
Technical Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-SS-T3AL-F55 | |
| Sensitive Area | 1.4×1.4mm | |
| Viewing Angle | 38° | |
| Operating voltage | 3.6V | |
| Operating current | 507μA | |
| Sleep current | 5 μA | |
| Operating Temperature | -20℃~+85℃ | |
| Storage Temperature | -40℃~+125℃ | |
| ESD performance HMB | ±2kV | |
| Wavelength range of filter | 5.5~14 μm | |
| Temp. measurement range | -70~+300 ℃ | |
| Temp. measurement accuracy | ±1℃(>100 temp.measurement±2% of the bubble) |
Note: For custom specifications, please contact us directly.
Outline Drawing
