LT-SS-T3AL-F55
,LT-SS-T3AL-F55 Temperature Transducer
,high temperature pressure transducer
-
FeaturesHigh Infrared Responsiveness, Repeatability And Reliability
-
Product NameTemperature Sensor
-
MaterialAluminum
-
Operating Temperature-20~85℃
-
ApplicationTemperature Measurement
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SS-T3AL-F55
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
High Infrared Response Rate Temperature Sensor
High Infrared Response Rate Temperature Sensor
Key Features
- Aluminum housing for durability
- High infrared response rate for accurate measurements
- Wide temperature measurement range: -70℃ to +300℃
- Exceptional reliability in industrial environments
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Overview
The LT-SS-T3AL-F55 is a high-performance temperature sensor designed for industrial applications. Featuring a TO-39 package with 38° viewing angle, this sensor incorporates an advanced infrared absorption layer structure for superior sensitivity.
Technical Specifications
| Attribute | Specification | Conditions |
|---|---|---|
| Part Number | LT-SS-T3AL-F55 | |
| Thermopile Sensitive Area | 1.4×1.4mm² | |
| Field of View | 38° | |
| Operating Voltage | 2.3V Min. | |
| Operating Current | 800μA Max. (507μA Typ.) | |
| Sleep Current | 5μA Typ. | |
| Operating Temperature | -20℃ to +85℃ | |
| Storage Temperature | -40℃ to +125℃ | |
| ESD Performance HMB | ±2kV Typ. | |
| Filter Wavelength Range | 5.5-15 μm | |
| Measuring Range | -70℃ to +300℃ | |
| Accuracy | ±1℃ (below 100℃) ±2% (above 100℃) |

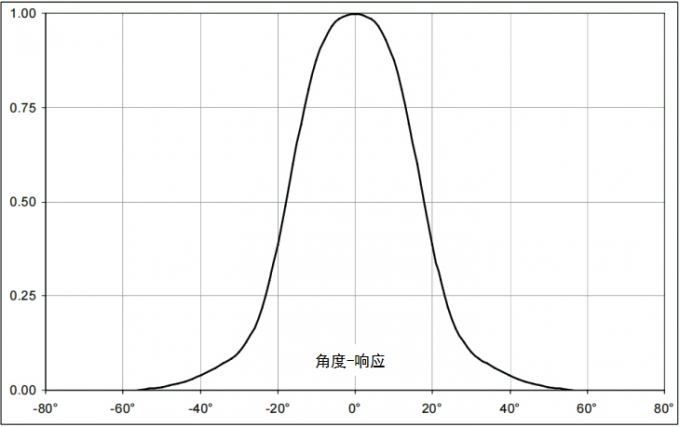

Field of View Diagram
38° field of view specification
Outline Dimensions
Mechanical dimensions in millimeters
Note: Custom specifications available upon request. Please contact our technical team for specialized requirements.
