Human Body Temperature Sensor
,Forehead Temperature Sensor
,High Infrared Response Rate Sensor
-
FeaturesHigh Infrared Responsiveness, Repeatability And Reliability
-
Product NameTemperature Sensor
-
MaterialAluminum
-
Operating Temperature-20~85℃
-
ApplicationForehead Thermometer
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SS-T1B-F55
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T
High Infrared Response Rate Human Body Temperature Sensor

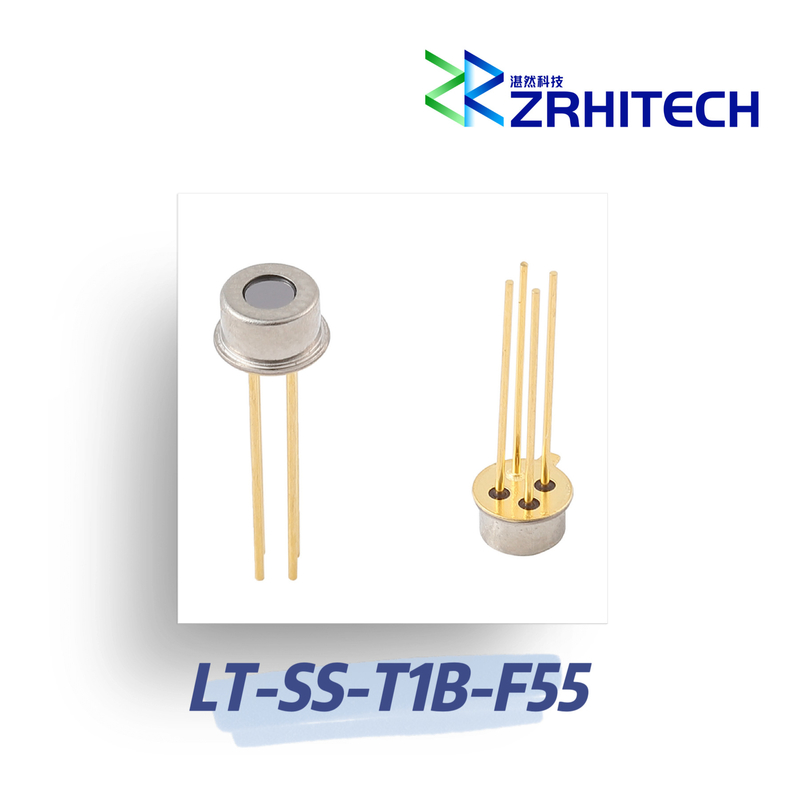

LT-SS-T1B-F55 High Infrared Response Rate Human Budy Temperature Sensor
Quick Detail:
· Aluminum housing
· High infrared response rate
· -20℃~+100℃ temperature measure range
· high reliability
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
LT-SS-T1B-F55 is a ZR part number for Temperature Sensor. viewing Angle 82°; High infrared absorption layer structure, high sensitivity; Fully integrated digital infrared thermopile; I2C interface, support PWM, relay mode output; Good stability, working temperature: -20℃~100℃
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-SS-T1B-F55 | |
| Chip Size | 1.15*1.15mm | |
| Sensitive Area | 0.85*0.85mm | |
| Voltage Response | 0.77mv | |
| Field | 82° | |
| Resistance | 160±15 kΩ | |
| Noise Figure | 52±2 nV/Hz1/2 | |
| Noise Equivalent Power | 0.55 nW/Hz1/2 | |
| Response Ratio | 95V/W | |
| Time Constant | 18ms | |
| Detectivity | 1E08 cm*Hz1/2/W | |
| Thermistor Value | 100±1% kΩ | |
| Thermistor Beta Value | 3950±1% K | |
| Operating Temperature | -20℃~+100℃ | |
| Storage Temperature | -40℃~+125℃ | |
| Dimension | 16.8×5.35 series(4pad) | |
| Note: for custom specs, please contact us directly. | ||
Response Curve
Filter
Outline Drawing (Unit: mm):
