SPDT Absorptive PIN Diode Switch
,SPDT PIN Diode Switch
,36 GHz PIN Diode Switch
-
Product NameLT-SW Series PIN Doide Switch
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range34 To 36 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SWDTA-340360S
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

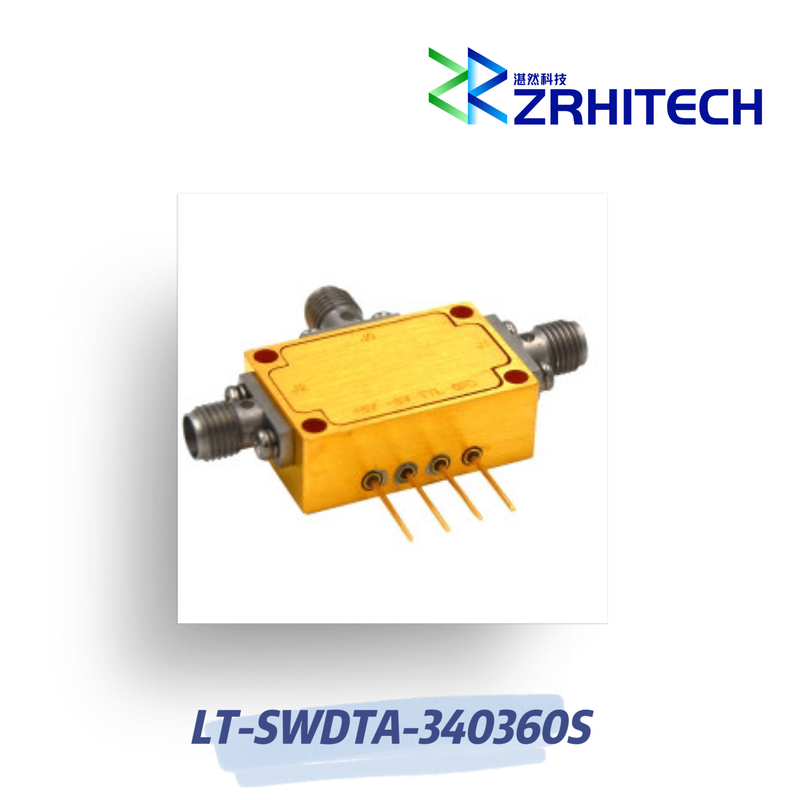

34 To 36 GHz SPDT Absorptive PIN Diode Switch
34 To 36 GHz SPDT Absorptive PIN Diode Switch
Product Overview
The LT-SWDTA-340360S is a high-performance absorptive PIN diode switch designed for demanding wireless communication applications in the 34 to 36 GHz frequency range.
Key Features
- Aluminum housing for durability
- Customizable frequency options available
- Wide operating temperature range: -40℃ to +85℃
- Fast switching time of 100ns
- Compliant with CE, RoHS, and REACH standards
- Includes 1-year manufacturer warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SWDTA-340360S | |
| Type | Absorptive | |
| Configuration | SPDT | |
| Frequency Range | 34 to 36 GHz | |
| Insertion Loss | 3.9 dB | |
| Isolation | 50 dB | |
| Switching Speed | 100 ns | |
| Control | TTL | |
| Input/Output VSWR | 2.0:1 | |
| Input Power | 0.2 W | |
| Power Supply (Bias) | +5V / 80mA -5V / 50mA |
|
| Dimensions | 25 × 25 × 10 mm |
Note: Custom specifications available upon request.
Product Dimensions
