0.02 To 3 GHz SP6T Reflective PIN Diode Switch
0.02 To 3 GHz SP6T Reflective PIN Diode Switch
Product Attributes
| Attribute | Value |
|---|---|
| Product name | LT-SW series PIN Diode Switch |
| Application | Wireless Communication |
| Material | Aluminum |
| Temperature | -40~85℃ |
| Frequency range | 0.02 to 3 GHz |
| Color | Silver |
Product Description
0.02 to 3 GHz LT-SW Series PIN Diode Switch
Key Features
- Aluminum Housing
- Customizable Frequency
- -40℃~+85℃ Operating Temperature
- Fast Switching Time 100ns
- CE, RoHS, REACH compliant
- 1 Year Warranty

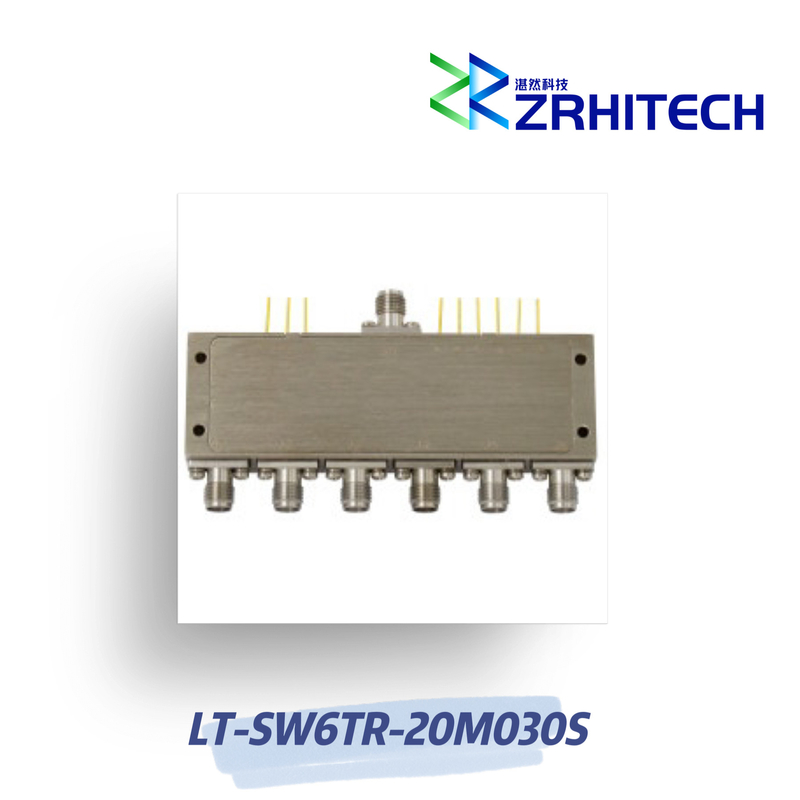

The LT-SW6TR-20M030S from ZR is a Reflective PIN Diode Switch with Frequency 0.02 to 3 GHz, Isolation 60 dB, Switching Speed 250ns. Power Supply with bias +5V/240mA and -5V/50mA.
Specifications
Electrical/Optical Characteristics (Ta=25℃ ±3℃)
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-SW6TR-20M030S | |
| Type | Reflective | |
| Configuration | SP6T | |
| Frequency Range | 0.02 to 3 GHz | |
| Insertion Loss | 2.3 dB | |
| Isolation | 60 dB | |
| Switching Speed | 250 ns | |
| Control | TTL | |
| Input/Output VSWR | 1.5:1 | |
| Input Power | 1.0 W | |
| Power Supply(Bias) | +5V / 240mA -5V / 50mA |
|
| Dimension | 40*33.03*12mm |
Note: for custom specs, please contact us directly.
Outline Drawing (Unit: mm)
