Absorptive SP6T PIN Diode Switch
,PIN Diode Switch 3GHz
,SP6T Switches
-
Product NameLT-SW Series PIN Doide Switch
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range0.02 To 3 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SW6TA-20M030S
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

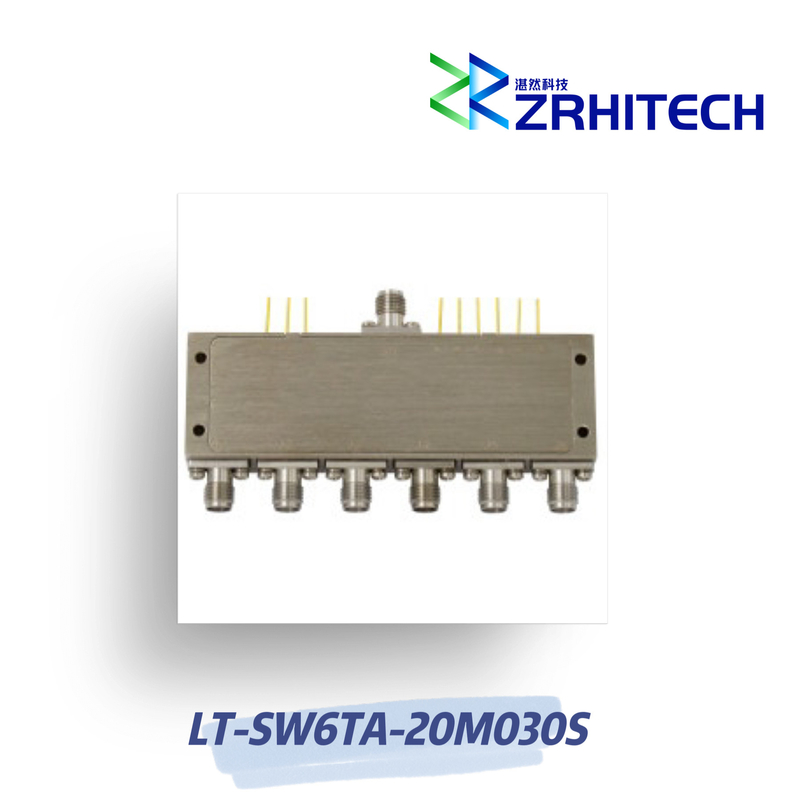

0.02 To 3 GHz SP6T Absorptive PIN Diode Switch
0.02 to 3 GHz LT-SW Series PIN Diode Switch
Quick Detail:
· Aluminum Housing
· Customizable Frequency
· -40℃~+85℃ Operating Temperature
· Fast Switching Time 100ns
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-SW6TA-20M030S from ZR is a Absorptive PIN Diode Switch with Frequency 0.02 to 3 GHz, Isolation 60 dB, Switching Speed 250ns. Power Supply with bias +5V/240mA and -5V/50mA. More details for LT-SW6TA-20M030S can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-SW6TA-20M030S | |
| Type | Absorptive | |
| Configuration | SP6T | |
| Frequency Range | 0.02 to 3 GHz | |
| Insertion Loss | 2.5 dB | |
| Isolation | 60 dB | |
| Switching Speed | 250 ns | |
| Control | TTL | |
| Input / Output VSWR | 1.5:1 | |
| Input Power | 1.0 W | |
| Power Supply(Bias) | +5V / 240mA | |
| -5V / 50mA | ||
| Dimension | 40*33.03*12mm | |
| Note: for custom specs, please contact us directly. | ||
Outline Drawing (Unit: mm):
