0.02 To 3 GHz SPST Reflective PIN Diode Switch
0.02 To 3 GHz SPST Reflective PIN Diode Switch
Product Overview
| Product Name | LT-SW series PIN Diode Switch |
|---|---|
| Application | Wireless Communication |
| Material | Aluminum |
| Temperature | -40~85℃ |
| Frequency Range | 0.02 to 3 GHz |
| Color | Silver |
Key Features
- Aluminum Housing for durability
- Customizable Frequency options
- Wide operating temperature range (-40℃~+85℃)
- Fast Switching Time of 500ns
- Compliant with CE, RoHS, and REACH standards
- 1 Year Warranty included
Product Description

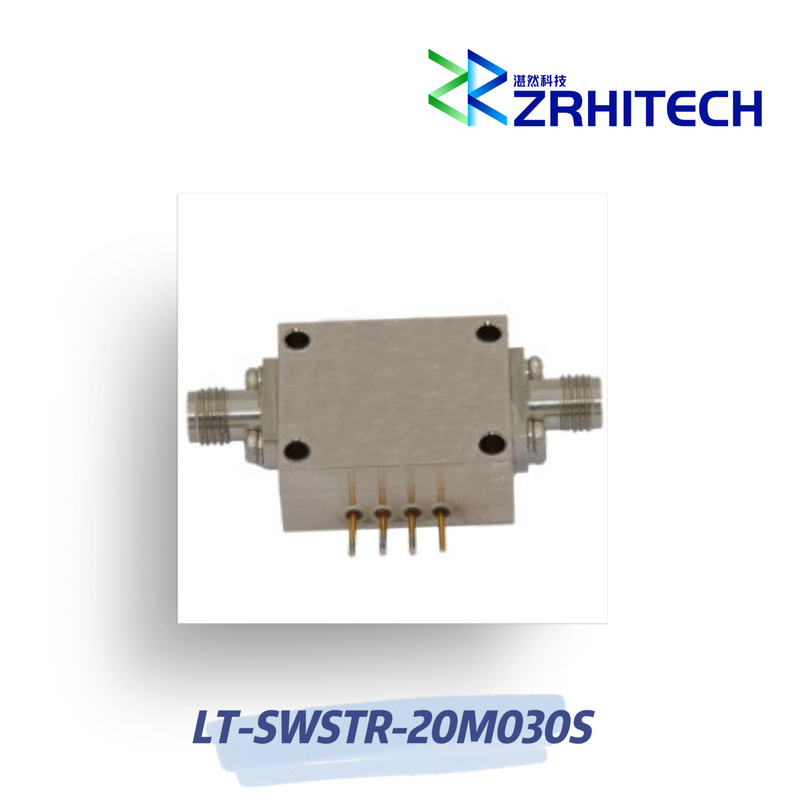

The LT-SWSTR-20M030S is a high-performance Reflective PIN Diode Switch operating in the 0.02 to 3 GHz frequency range, featuring 80 dB isolation and 500ns switching speed. The device requires a power supply with bias of +5V/50mA and -5V/50mA.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SWSTR-20M030S | |
| Type | Reflective | |
| Configuration | SPST | |
| Frequency Range | 0.02 to 3 GHz | |
| Insertion Loss | 1.8 dB | |
| Isolation | 80 dB | |
| Switching Speed | 500 ns | |
| Control | PIN | |
| Input/Output VSWR | 1.5:1 | |
| Input Power | 1.0 W | |
| Power Supply (Bias) | +5V / 50mA -5V / 50mA |
|
| Dimension | 24*20*10.2mm |
Note: Custom specifications available upon request. Please contact us directly for details.
