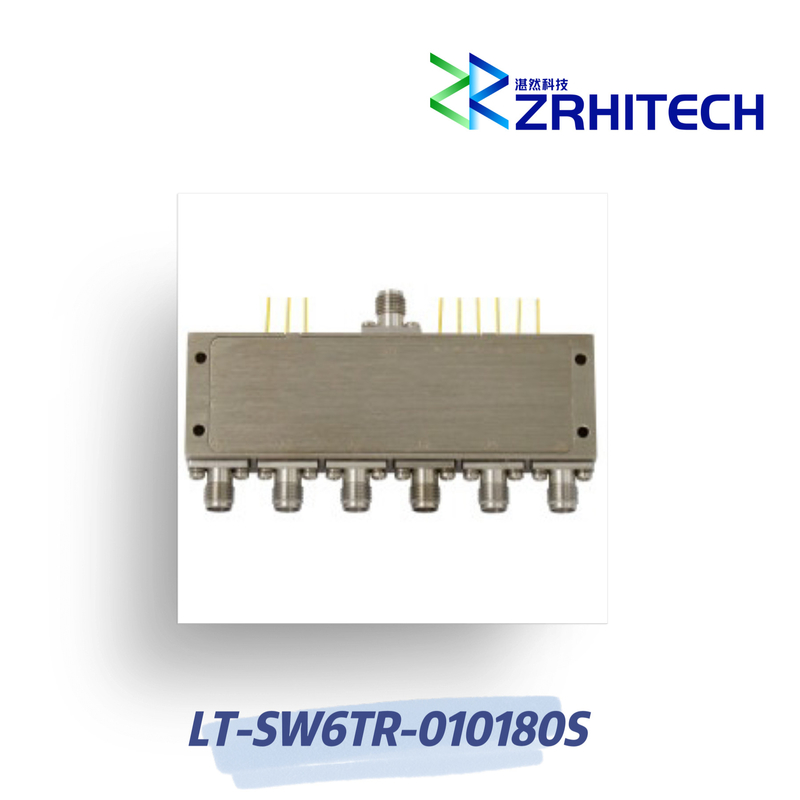

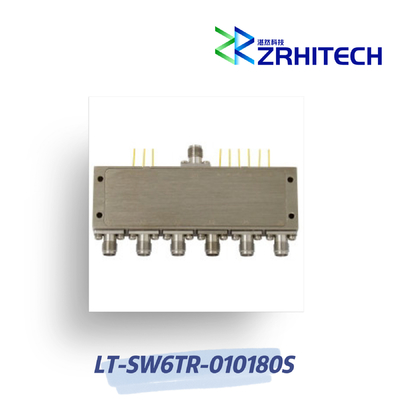

1 To 18 GHz SP6T Reflective PIN Diode Switch
1 To 18 GHz SP6T Reflective PIN Diode Switch
Product Overview
| Product name | LT-SW series PIN Diode Switch |
|---|---|
| Application | Wireless Communication |
| Material | Aluminum |
| Temperature | -40~85℃ |
| Frequency range | 1 to 18 GHz |
| Color | Silver |
Key Features
- Aluminum Housing for durability
- Customizable Frequency options
- Wide operating temperature range (-40℃~+85℃)
- Fast Switching Time of 80ns
- Compliant with CE, RoHS, and REACH standards
- 1 Year Warranty included
Product Description
The LT-SW6TR-010180S is a high-performance Reflective PIN Diode Switch operating in the 1 to 18 GHz frequency range. It features excellent isolation of 60 dB and fast switching speed of 80ns. The device requires power supply with bias of +5V/200mA and -12V/80mA.
Technical Specifications
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-SW6TR-010180S | |
| Type | Reflective | |
| Configuration | SP6T | |
| Frequency Range | 1 to 18 GHz | |
| Insertion Loss | 3.2 dB | |
| Isolation | 80 dB | |
| Switching Speed | 100 ns | |
| Control | PIN | |
| Input/Output VSWR | 2.0:1 | |
| Input Power | 1.0 W | |
| Power Supply (Bias) | +5V / 200mA -12V / 80mA |
|
| Dimension | 40*33*12mm |
Note: for custom specifications, please contact us directly.
