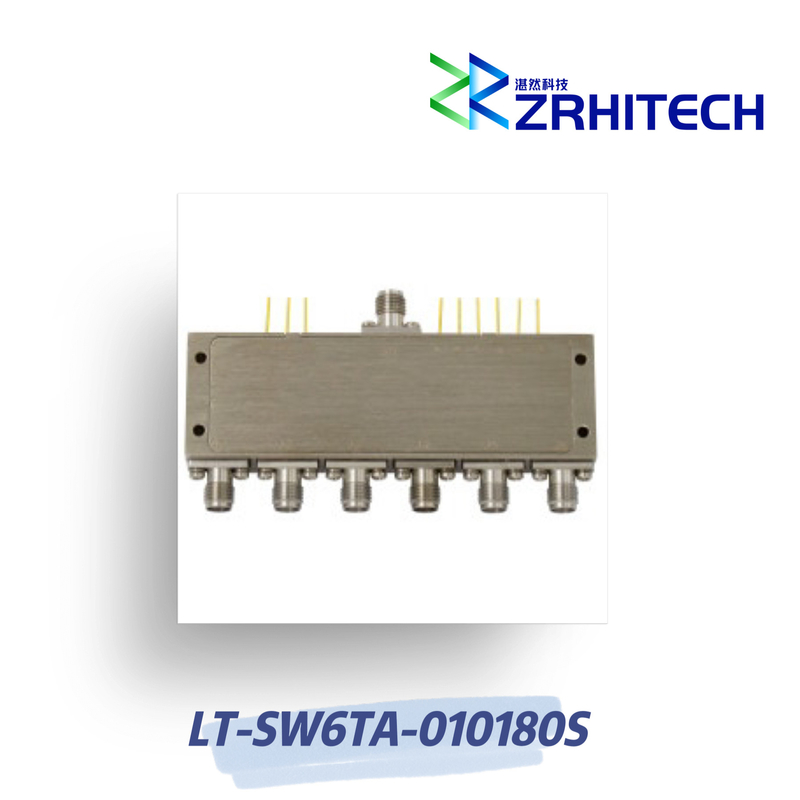

1 To 18 GHz SP6T Absorptive PIN Diode Switch
1 To 18 GHz SP6T Absorptive PIN Diode Switch
| Product name | LT-SW series PIN Diode Switch |
|---|---|
| Application | Wireless Communication |
| Material | Aluminum |
| Temperature | -40~85℃ |
| Frequency range | 1 to 18 GHz |
| Color | Silver |
1 to 18 GHz LT-SW Series PIN Diode Switch
Quick Detail:
- Aluminum Housing
- Customizable Frequency
- -40℃~+85℃ Operating Temperature
- Fast Switching Time 80ns
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-SW6TA-010180S from ZR is an Absorptive PIN Diode Switch with Frequency 1 to 18 GHz, Isolation 60 dB, Switching Speed 80ns. Power Supply with bias +5V/200mA and -12V/80mA.
Specifications:
Electrical / Optical Characteristics (Ta=25℃ ±3℃)
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-SW6TA-010180S | |
| Type | Absorptive | |
| Configuration | SP6T | |
| Frequency Range | 1 to 18 GHz | |
| Insertion Loss | 3.5 dB | |
| Isolation | 80 dB | |
| Switching Speed | 100 ns | |
| Control | PIN | |
| Input / Output VSWR | 2.0:1 | |
| Input Power | 1.0 W | |
| Power Supply(Bias) | +5V / 200mA -12V / 80mA |
|
| Dimension | 40*33*12mm |
Note: for custom specs, please contact us directly.
Outline Drawing (Unit: mm):
