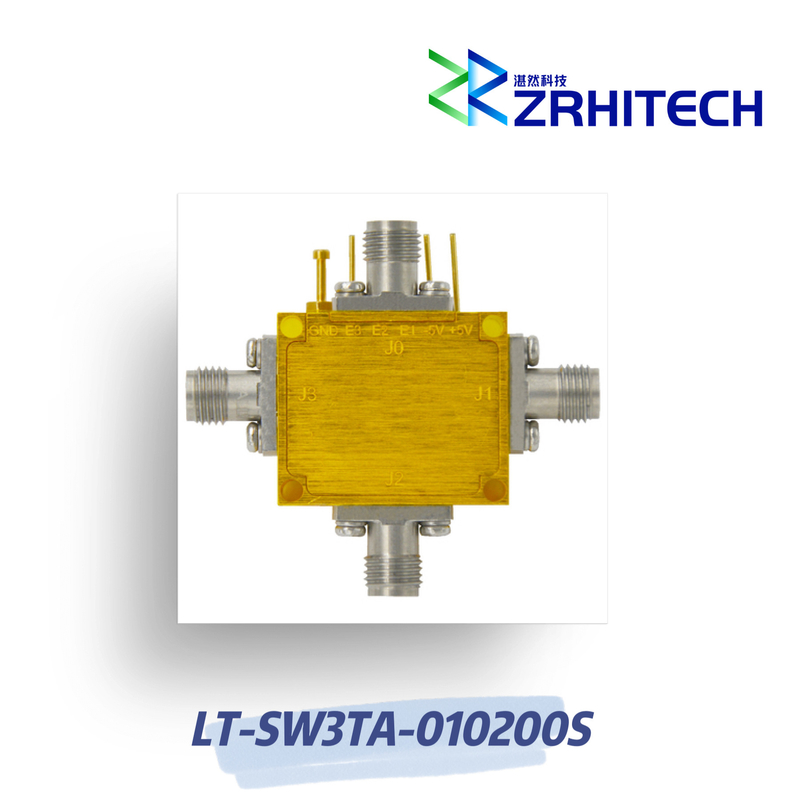

1 To 20 GHz SP3T Absorptive PIN Diode Switch
1 To 20 GHz SP3T Absorptive PIN Diode Switch
Product Overview
| Product Name | LT-SW series PIN Diode Switch |
|---|---|
| Application | Wireless Communication |
| Material | Aluminum |
| Temperature | -40~85℃ |
| Frequency Range | 1 to 20 GHz |
| Color | Silver |
Key Features
- Aluminum housing for durability
- Customizable frequency options
- Wide operating temperature range (-40℃ to +85℃)
- Fast switching time of 100ns
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Description
The LT-SW3TA-010200S is a high-performance absorptive PIN diode switch designed for wireless communication applications. Operating in the 1 to 20 GHz frequency range, it offers excellent isolation of 60 dB and rapid switching speed of 100ns. The device requires a power supply bias of +5V/150mA and -5V/50mA.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SW3TA-010200S | |
| Type | Absorptive | |
| Configuration | SP3T | |
| Frequency Range | 1 to 20 GHz | |
| Insertion Loss | 3.4 dB | |
| Isolation | 80 dB | |
| Switching Speed | 100 ns | |
| Control | PIN | |
| Input/Output VSWR | 2.0:1 | |
| Input Power | 1.0 W | |
| Power Supply (Bias) | +5V / 150mA -5V / 50mA |
|
| Dimension | 40x25x10.5mm |
Note: Custom specifications are available upon request. Please contact us directly for tailored solutions.
