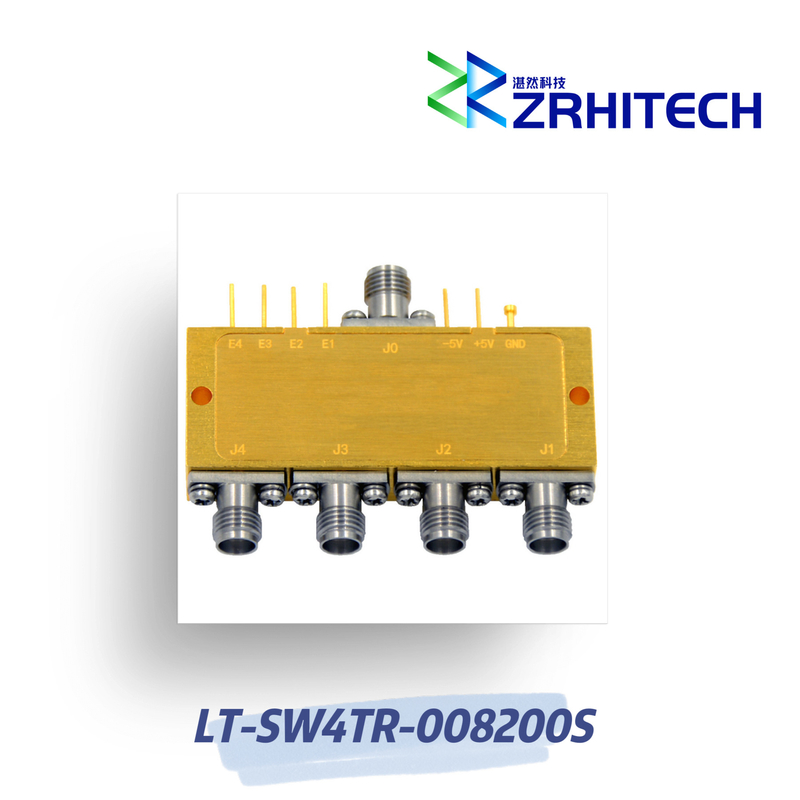

0.8 To 20 GHz SP4T Reflective PIN Diode Switch
0.8 To 20 GHz SP4T Reflective PIN Diode Switch
Product Overview
| Product Name | LT-SW series PIN Diode Switch |
|---|---|
| Application | Wireless Communication |
| Material | Aluminum |
| Temperature | -40~85℃ |
| Frequency Range | 0.8 to 20 GHz |
| Color | Silver |
Key Features
- Aluminum housing for durability
- Customizable frequency options
- Wide operating temperature range (-40℃ to +85℃)
- Fast switching time of 100ns
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Product Description
The LT-SW4TA-008200S is a high-performance absorptive PIN diode switch designed for wireless communication applications. Operating in the 0.8 to 20 GHz frequency range, it offers excellent isolation of 60 dB and rapid switching speed of 100ns. The device requires a power supply bias of +5V/200mA and -5V/50mA.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SW4TA-008200S | |
| Type | Absorptive | |
| Configuration | SP4T | |
| Frequency Range | 0.8 to 20 GHz | |
| Insertion Loss | 3.7 dB | |
| Isolation | 60 dB | |
| Switching Speed | 100 ns | |
| Control | TTL | |
| Input/Output VSWR | 2.0:1 | |
| Input Power | 1 W | |
| Power Supply (Bias) | +5V / 200mA -5V / 50mA |
|
| Dimension | 52*20*10.2mm |
Note: Custom specifications available upon request.
