0.8 GHz PIN Diode Switch
,20 GHz PIN Diode Switch
-
Product NameLT-SW Series PIN Doide Switch
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range0.8 To 20 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SWDTA-008200S
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

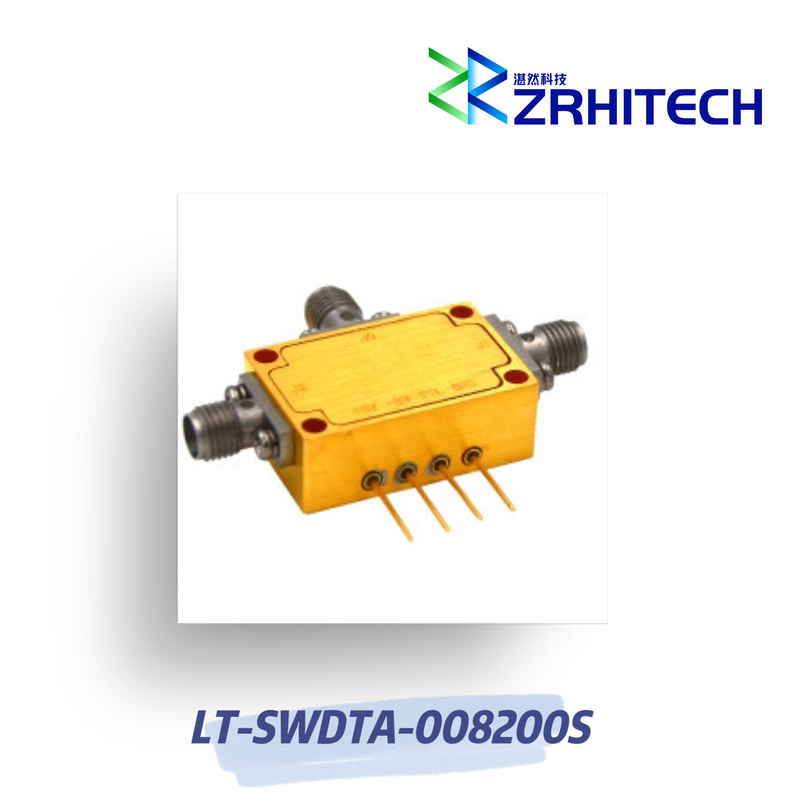

0.8 To 20 GHz SPDT Absorptive PIN Diode Switch
0.8 To 20 GHz SPDT Absorptive PIN Diode Switch
Product Overview
The LT-SW series PIN Diode Switch is designed for wireless communication applications, featuring a durable aluminum housing and excellent performance across a wide frequency range of 0.8 to 20 GHz.
Key Features
- Aluminum housing for durability
- Customizable frequency options
- Wide operating temperature range: -40℃ to +85℃
- Fast switching time of 100ns
- Compliance with CE, RoHS, and REACH standards
- 1-year manufacturer warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SWDTA-008200S | |
| Type | Absorptive | |
| Configuration | SPDT | |
| Frequency Range | 0.8 to 20 GHz | |
| Insertion Loss | 3.5 dB | |
| Isolation | 60 dB | |
| Switching Speed | 100 ns | |
| Control | TTL | |
| Input/Output VSWR | 2.0:1 | |
| Input Power | 1 W | |
| Power Supply (Bias) | +5V / 100mA -5V / 50mA |
|
| Dimensions | 28 × 18 × 10.2 mm |
Note: Custom specifications available upon request.
Product Dimensions
