Absorptive PIN Diode Switch
,SP4T PIN Diode Switch
,22GHz PIN Diode Switch
-
Product NameLT-SW Series PIN Doide Switch
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range0.5 To 22 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SW4TA-005220S
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

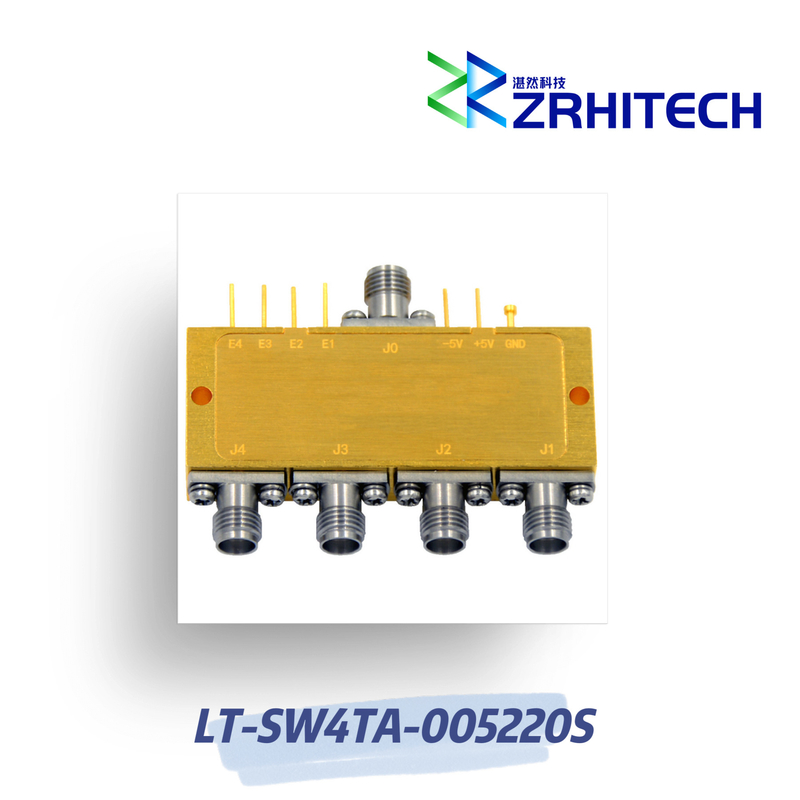

0.5 To 22 GHz SP4T Absorptive PIN Diode Switch
0.5 To 22 GHz SP4T Absorptive PIN Diode Switch
Product Overview
The LT-SW4TA-005220S is a high-performance absorptive PIN diode switch designed for wireless communication applications, featuring a broad frequency range of 0.5 to 22 GHz with excellent isolation characteristics.
Key Features
- Durable aluminum housing for robust protection
- Customizable frequency options available
- Wide operating temperature range (-40℃ to +85℃)
- Fast switching time of 100ns
- Compliance with CE, RoHS, and REACH standards
- Backed by 1-year manufacturer warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SW4TA-005220S | |
| Type | Absorptive | |
| Configuration | SP4T | |
| Frequency Range | 0.5 to 22 GHz | |
| Insertion Loss | 5.5 dB | |
| Isolation | 60 dB | |
| Switching Speed | 100 ns | |
| Control | TTL | |
| Input/Output VSWR | 1.5:1 | |
| Input Power | 1 W | |
| Power Supply (Bias) | +5V/200mA, -5V/50mA | |
| Dimensions | 52×20×10.2 mm |
Note: Custom specifications available upon request. Please contact us directly for tailored solutions.
Product Diagram
