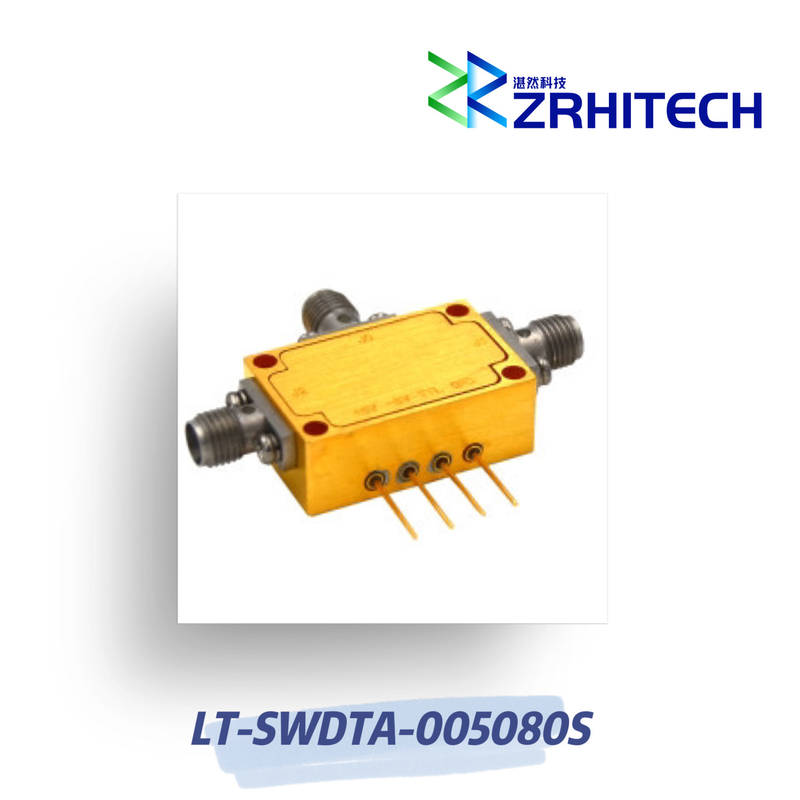

0.5 To 8 GHz SPDT Absorptive PIN Diode Switch
0.5 to 8 GHz LT-SW Series PIN Diode Switch
Quick Detail:
· Aluminum Housing
· Customizable Frequency
· -40℃~+85℃ Operating Temperature
· Fast Switching Time 100ns
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-SWDTA-005080S from ZR is a Absorptive PIN Diode Switch with Frequency 0.5 to 8 GHz, Isolation 60 dB, Switching Speed 100ns. Power Supply with bias +5V/50mA and -5V/50mA. More details for LT-SWDTA-005080S can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-SWDTA-005080S | |
| Type | Absorptive | |
| Configuration | SPDT | |
| Frequency Range | 0.5 to 8 GHz | |
| Insertion Loss | 2 dB | |
| Isolation | 60 dB | |
| Switching Speed | 100 ns | |
| Control | TTL | |
| Input / Output VSWR | 1.5:1 | |
| Input Power | 1 W | |
| Power Supply(Bias) | +5V / 50mA | |
| -5V / 50mA | ||
| Dimension | 28*18*10.2mm | |
| Note: for custom specs, please contact us directly. | ||
Outline Drawing (Unit: mm):
