Highlight
SP8T PIN Diode Switch
,2 GHz PIN Diode Switch
-
Product NameLT-SW Series PIN Doide Switch
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range0.5 To 2 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SW8TA-001020S
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

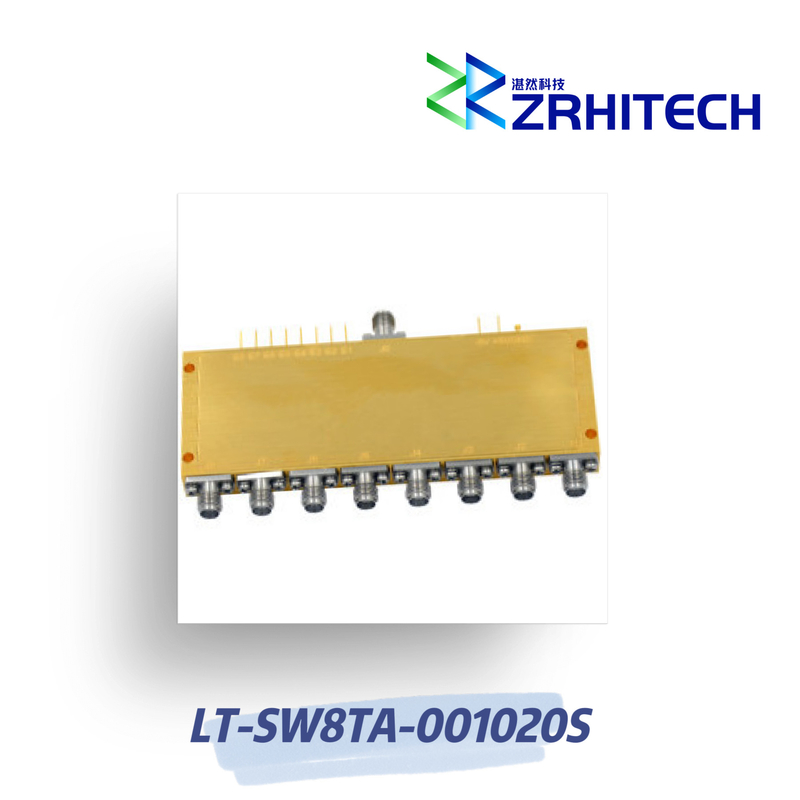

0.5 to 2 GHz SP8T Absorptive PIN Diode Switch
0.5 to 2 GHz SP8T Absorptive PIN Diode Switch
Product Overview
The LT-SW series PIN Diode Switch is designed for wireless communication applications, featuring aluminum housing and reliable performance across a wide temperature range.
Key Features
- Aluminum housing for durability
- Customizable frequency options
- Wide operating temperature range (-40℃ to +85℃)
- Fast switching time of 200ns
- Compliance with CE, RoHS, and REACH standards
- 1-year warranty for quality assurance
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SW8TA-001020S | |
| Type | Absorptive | |
| Configuration | SP8T | |
| Frequency Range | 0.5 to 2 GHz | |
| Insertion Loss | 2.5 dB | |
| Isolation | 70 dB | |
| Switching Speed | 200 ns | |
| Control | TTL | |
| Input/Output VSWR | 1.4:1 | |
| Input Power | 0.1 W | |
| Power Supply (Bias) | +5V / 400mA -5V / 50mA |
|
| Dimensions | 104 × 24 × 10.2 mm |
Note: For custom specifications, please contact us directly.
Product Dimensions
