SP4T Absorptive PIN Diode Switch
,PIN Diode Switch for Mobile Satellite
,PIN Diode Switch 26GHz
-
Product NameLT-SW Series PIN Doide Switch
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range0.5 To 26 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SW4TA-005260S
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

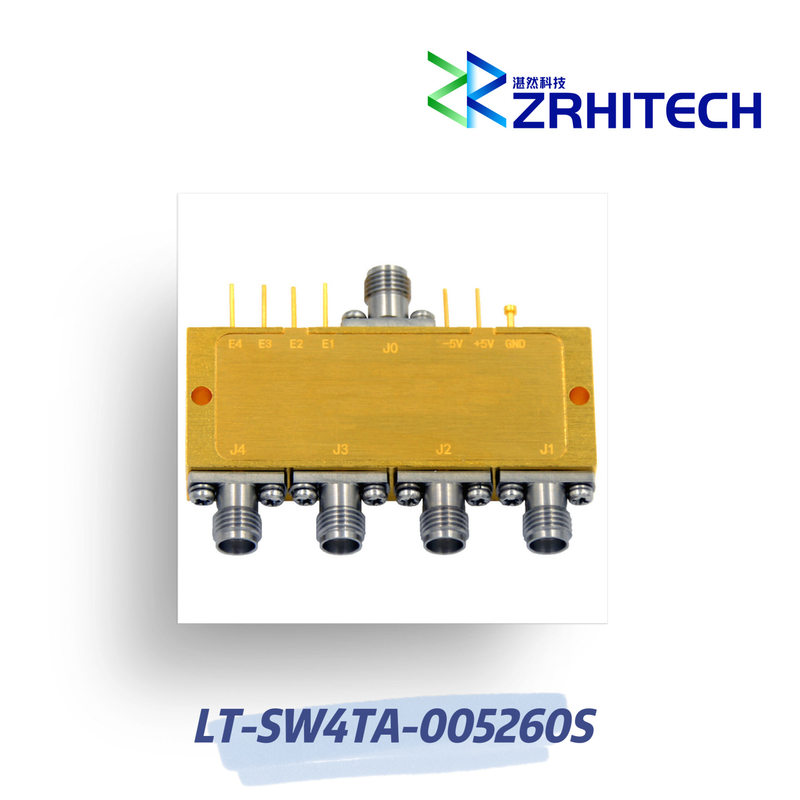

0.5 To 26 GHz SP4T Absorptive PIN Diode Switch
0.5 To 26 GHz SP4T Absorptive PIN Diode Switch
Product Overview
The LT-SW series PIN Diode Switch is designed for wireless communication applications, featuring an aluminum housing and operating temperature range of -40°C to +85°C.
Key Features
- Broad frequency range: 0.5 to 26 GHz
- Aluminum housing for durability
- Customizable frequency options
- Fast switching time: 100ns
- Compliance with CE, RoHS, and REACH standards
- 1-year warranty included
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SW4TA-005260E4B | |
| Type | Absorptive | |
| Configuration | SP4T | |
| Frequency Range | 0.5 to 26 GHz | |
| Insertion Loss | 5 dB | |
| Isolation | 50 dB | |
| Switching Speed | 100 ns | |
| Control | TTL | |
| Input/Output VSWR | 2.5:1 | |
| Input Power | 0.2 W | |
| Power Supply (Bias) | +5V / 200mA -5V / 50mA |
|
| Dimension | 50.8 × 20 × 10.2 mm |
Note: For custom specifications, please contact us directly.
Outline Drawing
