SP6T RF Pin Diode Switches
,Pin Diode Switches SMA
,20GHz Pin Diode Switch
-
Product NameLT-SW Series PIN Doide Switch
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range1 To 20 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SW6TA-010200S
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

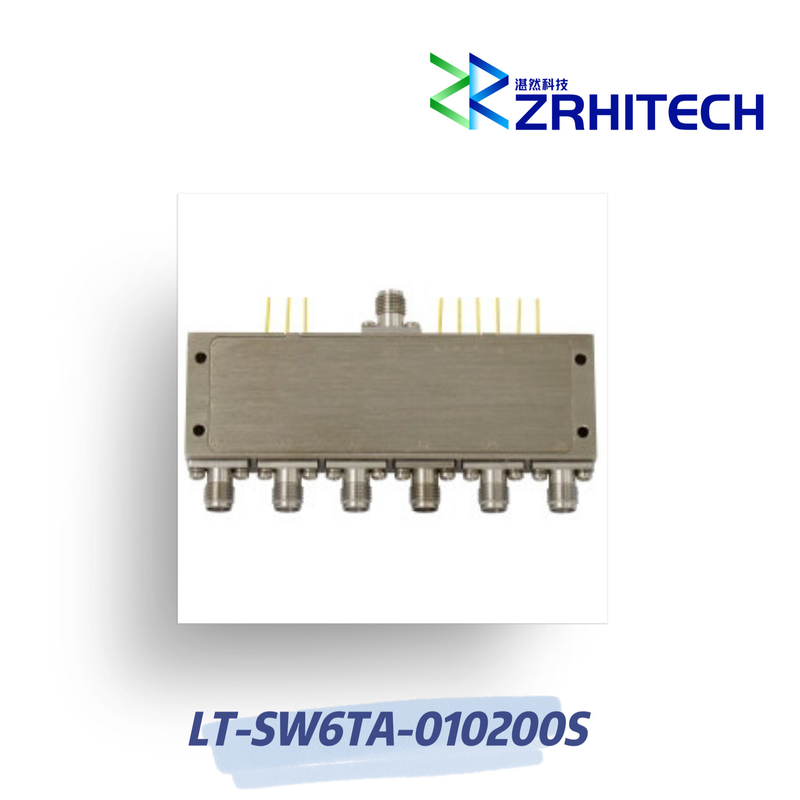

1 To 20 GHz SP6T Absorptive PIN Diode Switch
1 To 20 GHz SP6T Absorptive PIN Diode Switch
Product Overview
The LT-SW6TA-010200S is a high-performance absorptive PIN diode switch designed for wireless communication applications, featuring a broad frequency range of 1 to 20 GHz with excellent isolation characteristics.
Key Features
- Durable aluminum housing for robust performance
- Customizable frequency options available
- Wide operating temperature range (-40℃ to +85℃)
- Ultra-fast switching time of 100ns
- Compliance with CE, RoHS, and REACH standards
- Backed by 1-year manufacturer warranty
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-SW6TA-010200S | |
| Type | Absorptive | |
| Configuration | SP6T | |
| Frequency Range | 1 to 20 GHz | |
| Insertion Loss | 3.5 dB | |
| Isolation | 60 dB | |
| Switching Speed | 100 ns | |
| Input/Output VSWR | 2.0:1 | |
| Input Power | 1 W | |
| Power Supply (Bias) | +5V/300mA, -5V/50mA | |
| Dimensions | 78 × 24 × 10.20 mm |
Note: Custom specifications available upon request. Please contact us for tailored solutions.
Product Dimensions
