| Brand Name: | ZR Hi-Tech |
| Model Number: | LT-PA020200-G28P18 |
| MOQ: | 1 |
| Delivery Time: | 4 weeks |
| Payment Terms: | T/T |
| Attribute | Value |
|---|---|
| Product name | LT-PA series Power Amplifier |
| Application | Wireless Communication |
| Material | Aluminum |
| Temperature | -40~85℃ |
| Frequency range | 2 to 20 GHz |
| Color | Silver |
2 to 20 GHz LT-PA Series Power Amplifier
The LT-PA-020200-G28P18 from ZR is a RF Amplifier with Frequency 2 to 20 GHz, Small Signal Gain 28 dB, Gain Flatness ± 1.5 dB, Output Power 18dBm, Input Power 5 dBm. Tags: Power Amplifier. More details for LT-PA020200-G28P18 can be seen below.
Electrical / Optical Characteristics (Ta=25℃ ±3℃)
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PA-020200-G28P18 | |
| Configuration | Module with Connector | |
| Frequency Range | 2 to 20 GHz | |
| Small Signal Gain | 28 dB | |
| Gain Flatness | ±1.5 dB | |
| Output Power | 18 dBm | |
| Input Power | 5 dBm | |
| VSWR | 2.0:1 | |
| Power Supply | +12V / 300mA | |
| Operating Temperature | -55 to +85 ℃ | |

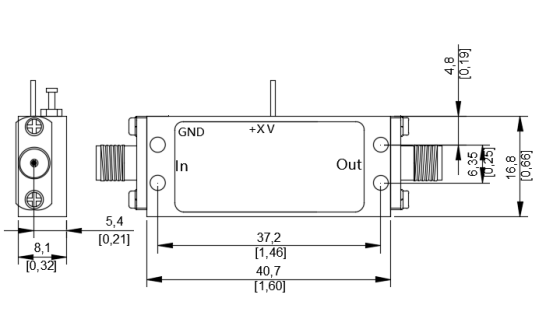

| Dimension | 40.7*16.8*8.1 mm |
Note: for custom specs, please contact us directly.
