Highlight
RF Amplifiers 29dB
,Small Gain RF Amplifiers
,RF Amplifiers 8.4GHz
-
Product NameLT-PA Series Power Amplifier
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range7.9 To 8.4 GHz
-
ColorSilver
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-PA-079084-G29P13
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

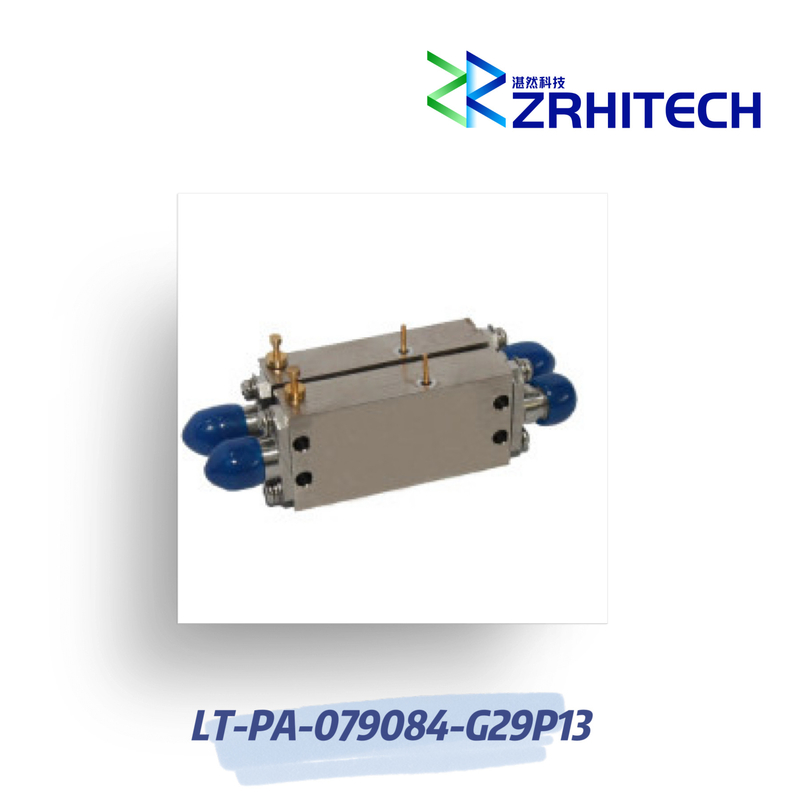

7.9 To 8.4 GHz 13 dBm Power Amplifier with 29dB Small Signal Gain
7.9 to 8.4 GHz LT-PA Series Power Amplifier
Quick Detail:
· Aluminum Housing
· Customizable Frequency
· -40℃~+85℃ Operating Temperature
· Small Signal Gain 29dB
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-PA-079084-G29P13 from ZR is a RF Amplifier with Frequency 7.9 to 8.4 GHz, Small Signal Gain 29 dB, Gain Flatness ±1.0 dB, Output Power 13dBm, Input Power TBD dBm. Tags: Power Amplifier. More details for LT-PA-079084-G29P13 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-PA-079084-G29P13 | |
| Configuration | Module with Connector | |
| Frequency Range | 7.9 to 8.4 GHz | |
| Small Signal Gain | 29 dB | |
| Gain Flatness | ±1.0 dB | |
| Output Power | 13 dBm | |
| Input Power | TBD dBm | |
| VSWR | 1.8:1 | |
| Power Supply | +15V / 320 mA | |
| Operating Temperature | -40 to +70 ℃ | |
| Dimension | 40.7*16.8*8.1 mm | |
| Note: for custom specs, please contact us directly. | ||
Outline Drawing (Unit: mm):
