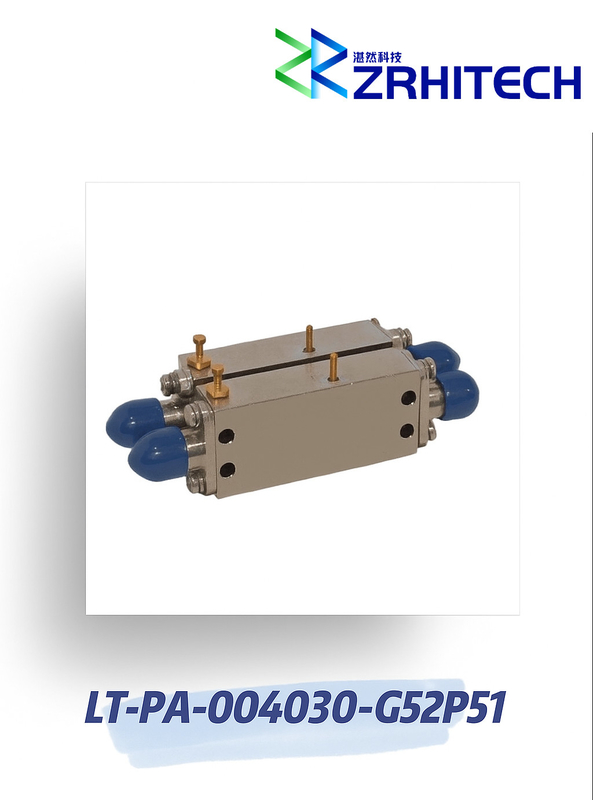

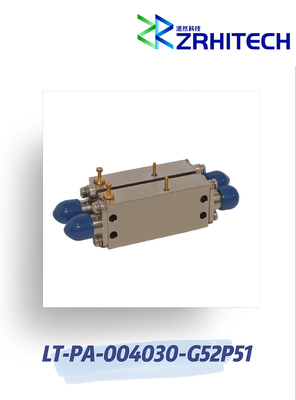

0.4 to 3 GHz 51dBm Power Amplifier with 52 dB Small Signal Gain

Name: 0.4 to 3 GHz 51dBm Power Amplifier with 52 dB Small Signal Gain
Brand: Sichuan ZR Hi-Tech Ltd.
SKU: LT-PA-004030-G52P51
Availability: InStock

Brand Name:	ZR Hi-Tech
Model Number:	LT-PA-004030-G52P51
MOQ:	1
Delivery Time:	4 weeks
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Document:

Product Brochure PDF

Product Name:

LT-PA Series Power Amplifier

Application:

Wireless Communication

Material:

Aluminum

Temperature:

-40~50℃

Frequency Range:

0.4 To 3 GHz

Color:

Silver

Packaging Details:

carton packing

Product Description

0.4 to 3 GHz 51dBm Power Amplifier with 52 dB Small Signal Gain

Product Attributes

Attribute	Value
Product name	LT-PA series Power Amplifier
Application	Wireless Communication
Material	Aluminum
Temperature	-40~50℃
Frequency range	0.4 to 3 GHz
Color	Silver

Product Description

0.4 to 3 GHz LT-PA Series Power Amplifier

Quick Detail:

Aluminum Housing
Customizable Frequency
-40℃ ~+50℃ operating temperature
Small Signal Gain 52dB
Output Power 51dBm
CE, RoHS, REACH compliant
1 Year Warranty

The LT-PA-004030-G52P51 from ZR is a RF Amplifier with Frequency 0.4 to 3 GHz, Small Signal Gain 52 dB, Gain Flatness ±3.5 dB, Output Power 51dBm, Input Power 7W2. Tags: Power Amplifier. More details for LT-PA-004030-G52P51 can be seen below.

Specifications

Electrical / Optical Characteristics (Ta=25℃ ±3℃)

Items	Specification	Conditions
Part Number	LT-PA-004030-G52P51
Configuration	Module with Connector
Frequency Range	0.4 to 3 GHz
Small Signal Gain	52 dB
Gain Flatness	±3.5 dB
Output Power	51dBm
Input Power	7W2
VSWR	2.5:1
Power Supply	+48V / 15A
Operating Temperature	-40 to +50 ℃
Dimension	240x120x40 mm

Note: for custom specs, please contact us directly.

Outline Drawing (Unit: mm)
