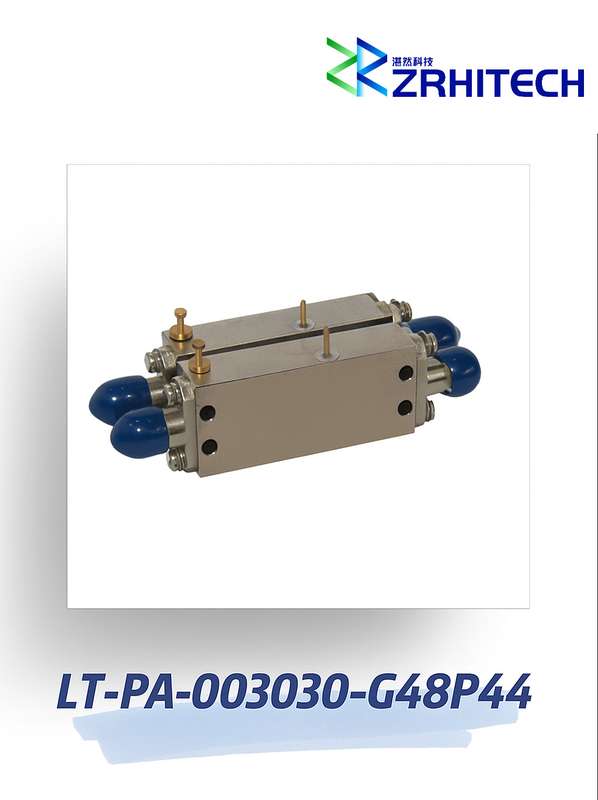

0.3 to 3 GHz 44 dBm Power Amplifier with 48 dB Small Signal Gain

Name: 0.3 to 3 GHz 44 dBm Power Amplifier with 48 dB Small Signal Gain
Brand: Sichuan ZR Hi-Tech Ltd.
SKU: LT-PA-003030-G48P44
Availability: InStock

Brand Name:	ZR Hi-Tech
Model Number:	LT-PA-003030-G48P44
MOQ:	1
Delivery Time:	4 weeks
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Document:

Product Brochure PDF

Product Name:

LT-PA Series Power Amplifier

Application:

Wireless Communication

Material:

Aluminum

Temperature:

-40~50℃

Frequency Range:

0.3 To 3 GHz

Color:

Silver

Packaging Details:

carton packing

Product Description

0.3 to 3 GHz 44 dBm Power Amplifier with 48 dB Small Signal Gain

Product Attributes

Attribute	Value
Product name	LT-PA series Power Amplifier
Application	Wireless Communication
Material	Aluminum
Temperature	-40~50℃
Frequency range	0.3 to 3 GHz
Color	Silver

Product Description

0.3 to 3 GHz LT-PA Series Power Amplifier

Quick Detail:

Aluminum Housing
Customizable Frequency
-40℃ ~+50℃ operating temperature
Small Signal Gain 48dB
Output Power 44dBm
CE, RoHS, REACH compliant
1 Year Warranty

The LT-PA-003030-G48P44 from ZR is a RF Amplifier with Frequency 0.3 to 3 GHz, Small Signal Gain 48 dB, Gain Flatness ±3.5 dB, Output Power 44dBm. Tags: Power Amplifier. More details for LT-PA-003030-G48P44 can be seen below.

Specifications

Electrical / Optical Characteristics (Ta=25℃± 3℃)

Items	Specification	Conditions
Part Number	LT-PA-003030-G48P44
Configuration	Module with Connector
Frequency Range	0.3 to 3 GHz
Small Signal Gain	50 dB
Gain Flatness	±3.5 dB
Output Power	50dBm
VSWR	2.5:1
Power Supply	+48V / 3.5A
Operating Temperature	-40 to +50 ℃
Dimension	70x120x15 mm

Note: for custom specs, please contact us directly.

Outline Drawing
