0.5 to 18 GHz 20 Watt LT-PD Series 2-Way Power Divider

Name: 0.5 to 18 GHz 20 Watt LT-PD Series 2-Way Power Divider
Brand: Sichuan ZR Hi-Tech Ltd.
SKU: LT-PD-2S-005180
Availability: InStock

Brand Name:	ZR Hi-tech
Model Number:	LT-PD-2S-005180
MOQ:	1
Delivery Time:	4 weeks
Payment Terms:	D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Document:

Product Brochure PDF

Packaging Details:

carton packing

Product Description

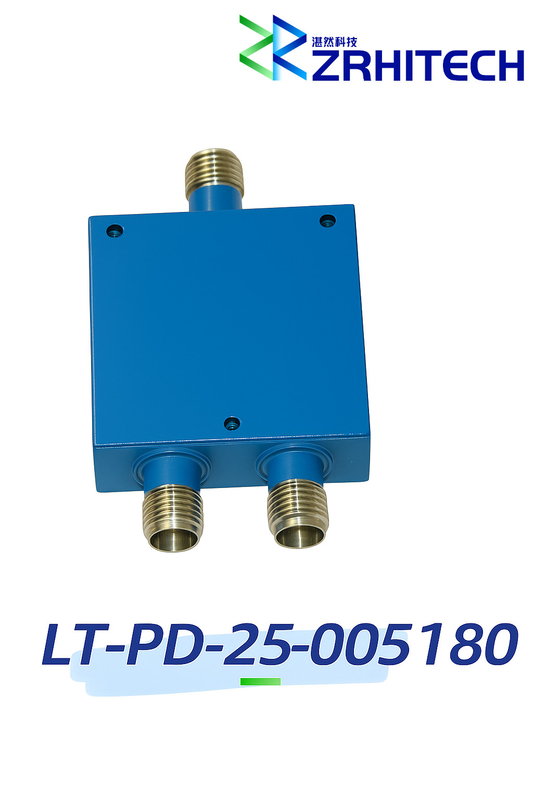

0.5 to 18 GHz 20 Watt LT-PD Series 2-Way Power Divider

Quick Detail:

2-Way Power Divider
Stripline Design
-55℃ to +85℃ operating temperature
0.5 to 18 GHz Frequency Range
Max Power 20 Watt
Insertion Loss < 1.7 dB
Isolation > 18 dB
CE, RoHS, REACH compliant
1 Year Warranty

Description:

The LT-PD-2S-005180 from ZR is a high-performance 2-way power divider operating from 0.5 to 18 GHz. Capable of handling up to 20 Watt (CW) with 1.7 dB max insertion loss and 18 dB min isolation. Features SMA-Female connectors and is REACH and RoHS compliant.

Specifications:

Electrical / Optical Characteristics (Ta=25℃± 3℃)

Items	Specification	Conditions
Part Number	LT-PD-2S-005180
Frequency Range	0.5 to 18 GHz
Impedance	50 Ohms
Input VSWR	1.4:1 Max.
Output VSWR	1.4:1 Max.
Insertion Loss	1.7 dB Max.	Excluding Nominal Splitter Loss 3.0dB
Isolation	18 dB Min.
Amplitude Balance	0.6 dB Max.
Phase Balance	6 Degrees Max.
Input Power	20 kW
Connectors	SMA-Female
Dimension	149.2x26.4x12.7 mm

Note: for custom specs, please contact us directly.
