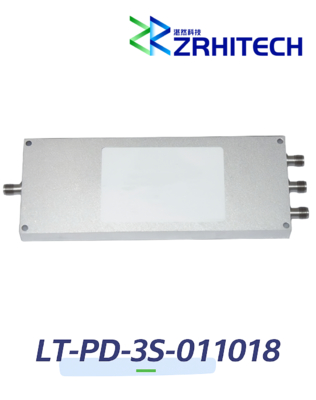

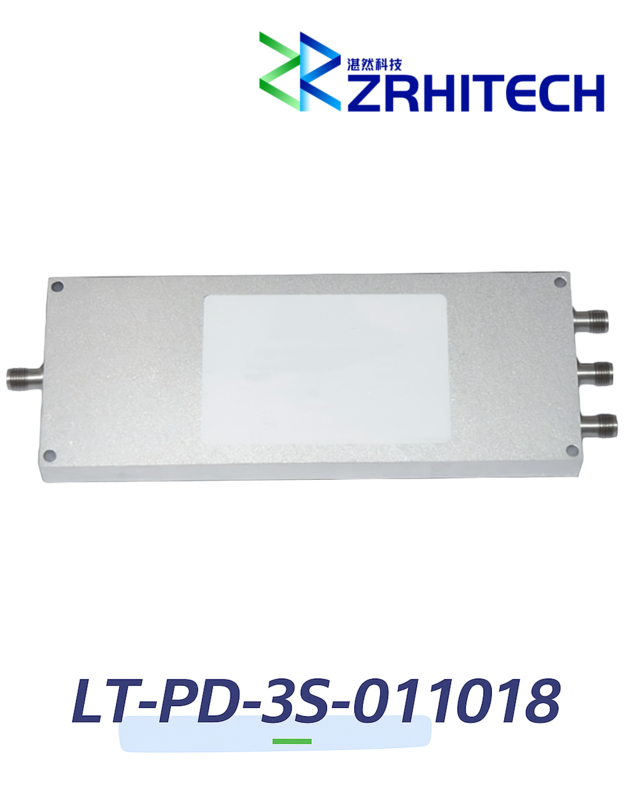

1.1 to 1.8 GHz 0.5 Watt LT-PD Series 3-Way Power Divider
1.1 to 1.8 GHz 0.5 Watt LT-PD Series 3-Way Power Divider
Quick Features
- 3-Way Power Divider with stripline design
- Frequency Range: 1.1 to 1.8 GHz
- Operating Temperature: -40℃ to +70℃
- Maximum Power: 0.5 Watt
- Insertion Loss: < 1.0 dB
- Isolation: > 20 dB
- Compliance: CE, RoHS, REACH
- 1 Year Warranty
Product Description
The LT-PD-3S-011018 is a high-performance 3-way power divider operating from 1.1 to 1.8 GHz. With a maximum power handling of 0.5 Watt (CW), it features 1.0 dB max insertion loss and 20 dB min isolation. The unit utilizes SMA-Female connectors and complies with REACH and RoHS environmental standards.
Technical Specifications
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-3S-011018 | |
| Frequency Range | 1.1 to 1.8 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.3:1 Max. | |
| Output VSWR | 1.3:1 Max. | |
| Insertion Loss | 1.0 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 20 dB Min. | |
| Amplitude Balance | 1.2 dB Max. | |
| Phase Balance | 16 Degrees Max. | |
| Input Power | 0.5 kW | |
| Connectors | SMA-Female | |
| Dimensions | 61×42×12 mm |
Note: Custom specifications available upon request.
Outline Drawing
