| Brand Name: | ZR Hi-tech |
| Model Number: | LT-PD-2S-060180 |
| MOQ: | 1 |
| Delivery Time: | 4 weeks |
| Payment Terms: | D/A,D/P,T/T |

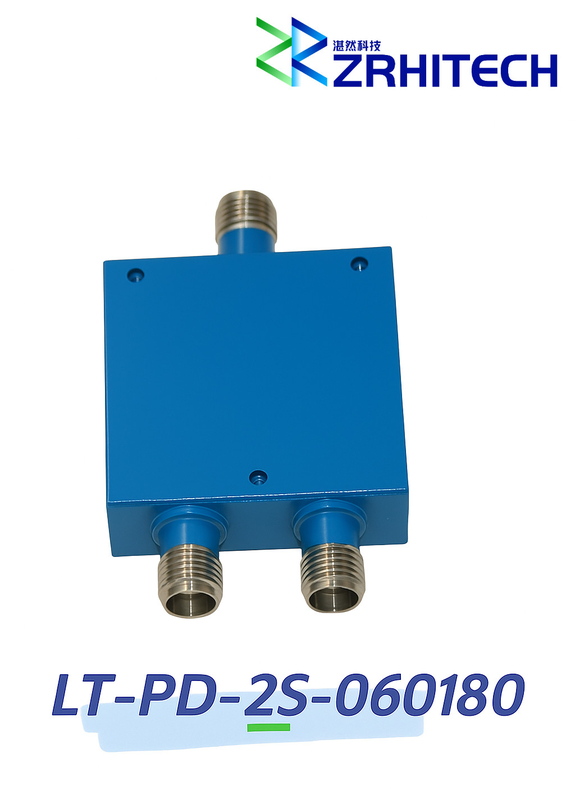

The LT-PD-2S-060180 is a high-performance 2-way power divider with stripline design, operating from 6 to 18 GHz frequency range. This robust component handles up to 20 Watt (CW) power with excellent insertion loss and isolation characteristics.
| Parameter | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-2S-060180 | |
| Frequency Range | 6 to 18 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.4:1 Max. | |
| Output VSWR | 1.4:1 Max. | |
| Insertion Loss | 0.8 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 18 dB Min. | |
| Amplitude Balance | 0.4 dB Max. | |
| Phase Balance | 6 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | SMA-Female | |
| Dimensions | 29.2 × 26.9 × 12.7 mm |
