2 to 26.5 GHz 20 Watt LT-PD Series 4-Way Power Divider

Name: 2 to 26.5 GHz 20 Watt LT-PD Series 4-Way Power Divider
Brand: Sichuan ZR Hi-Tech Ltd.
SKU: LT-PD-4S-020265
Availability: InStock

Brand Name:	ZR Hi-tech
Model Number:	LT-PD-4S-020265
MOQ:	1
Delivery Time:	4 weeks
Payment Terms:	D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Document:

Product Brochure PDF

Packaging Details:

carton packing

Product Description

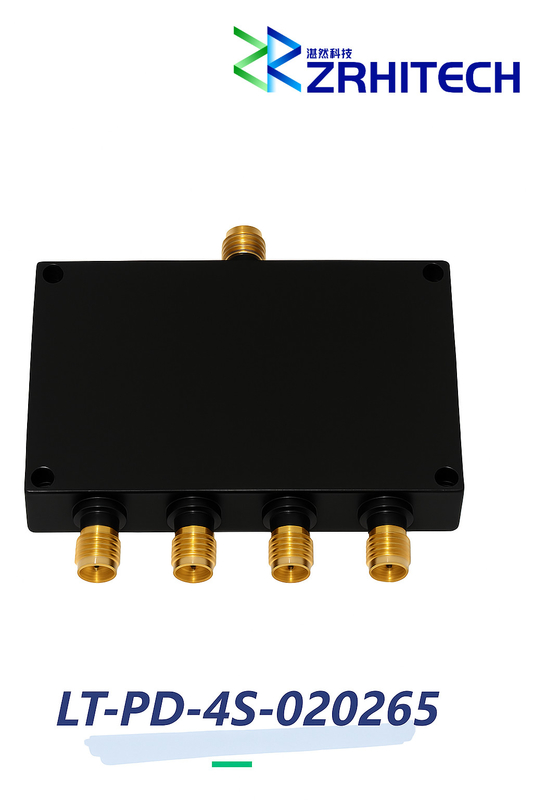

2 to 26.5 GHz 20 Watt LT-PD Series 4-Way Power Divider

Quick Detail:

4-Way Power Divider
Stripline Design
-55℃ to +85℃ operating temperature
2 to 26.5 GHz Frequency Range
Max Power 20 Watt
Insertion Loss < 2.7 dB
Isolation > 17 dB
CE, RoHS, REACH compliant
1 Year Warranty

Description:

The LT-PD-4S-020265 from ZR is a high-performance 4-way power divider operating from 2 to 26.5 GHz. Capable of handling up to 20 Watt (CW), it features a maximum insertion loss of 2.7 dB and minimum isolation of 17 dB. The unit utilizes SMA-Female connectors and complies with REACH and RoHS standards.

Specifications:

Items	Specification	Conditions
Part Number	LT-PD-4S-020265
Frequency Range	2 to 26.5 GHz
Impedance	50 Ohms
Input VSWR	1.6:1 Max.
Output VSWR	1.6:1 Max.
Insertion Loss	2.7 dB Max.	Excluding Nominal Splitter Loss 3.0dB
Isolation	17 dB Min.
Amplitude Balance	0.8 dB Max.
Phase Balance	10 Degrees Max.
Input Power	20 kW
Connectors	SMA-Female
Dimension	79.2x51.6x12.7 mm

Note: for custom specifications, please contact us directly.
