Power Divider
Created with Pixso. 6 to 26.5 GHz 20 Watt LT-PD Series 4-Way Power Divider

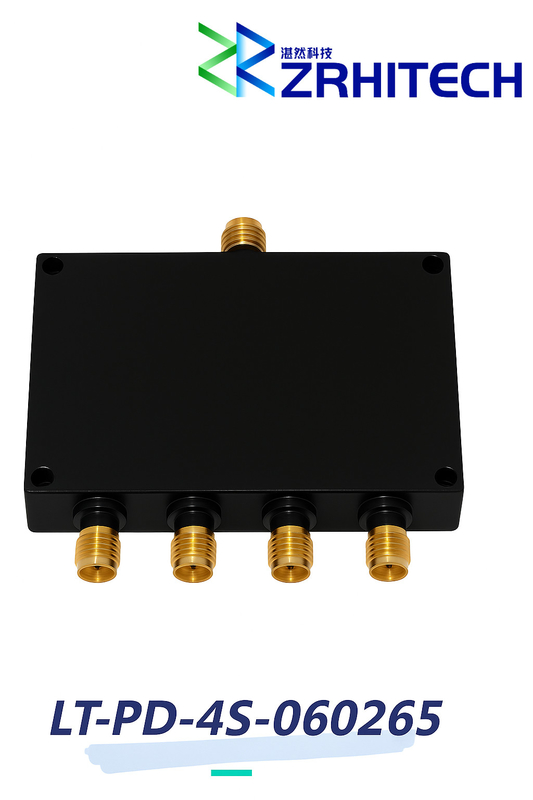

6 to 26.5 GHz 20 Watt LT-PD Series 4-Way Power Divider
  • name

6 to 26.5 GHz 20 Watt LT-PD Series 4-Way Power Divider

Brand Name: ZR Hi-tech
Model Number: LT-PD-4S-060265
MOQ: 1
Delivery Time: 4 weeks
Payment Terms: D/A,D/P,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Document:
Product Brochure PDF
Packaging Details:
carton packing
Product Description
6 to 26.5 GHz 20 Watt LT-PD Series 4-Way Power Divider
Quick Detail:
  • 4-Way Power Divider
  • Stripline Design
  • -55℃ to +85℃ operating temperature
  • 6 to 26.5 GHz Frequency Range
  • Max Power 20 Watt
  • Insertion Loss < 1.9 dB
  • Isolation > 16 dB
  • CE, RoHS, REACH compliant
  • 1 Year Warranty
Description:

The LT-PD-4S-060265 from ZR is a 4-way power divider that operates from 6 to 26.5 GHz and can handle up to 20 Watt (CW) with 1.9 dB max insertion loss and 16 dB min isolation. The package interface uses SMA-Female connectors and is REACH and RoHS compliant.

Specifications:
Items Specification Conditions
Part Number LT-PD-4S-060265
Frequency Range 6 to 26.5 GHz
Impedance 50 Ohms
Input VSWR 1.6:1 Max.
Output VSWR 1.6:1 Max.
Insertion Loss 1.9 dB Max. Excluding Nominal Splitter Loss 3.0dB
Isolation 16 dB Min.
Amplitude Balance 0.8 dB Max.
Phase Balance 8 Degrees Max.
Input Power 20 kW
Connectors SMA-Female
Dimension 38.1x52.3x12.7 mm
Note: for custom specs, please contact us directly.
Outline Drawing (Unit: mm):
6 to 26.5 GHz 20 Watt LT-PD Series 4-Way Power Divider 0
Tags:

LT-PD Series Power Divider

20 Watts Power Divider

3.5 GHz Power Divider
