18 to 40 GHz 20 Watt LT-PD Series 4-Way Power Divider

Name: 18 to 40 GHz 20 Watt LT-PD Series 4-Way Power Divider
Brand: Sichuan ZR Hi-Tech Ltd.
SKU: LT-PD-4S-180400
Availability: InStock

Brand Name:	ZR Hi-tech
Model Number:	LT-PD-4S-180400
MOQ:	1
Delivery Time:	4 weeks
Payment Terms:	D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Document:

Product Brochure PDF

Packaging Details:

carton packing

Product Description

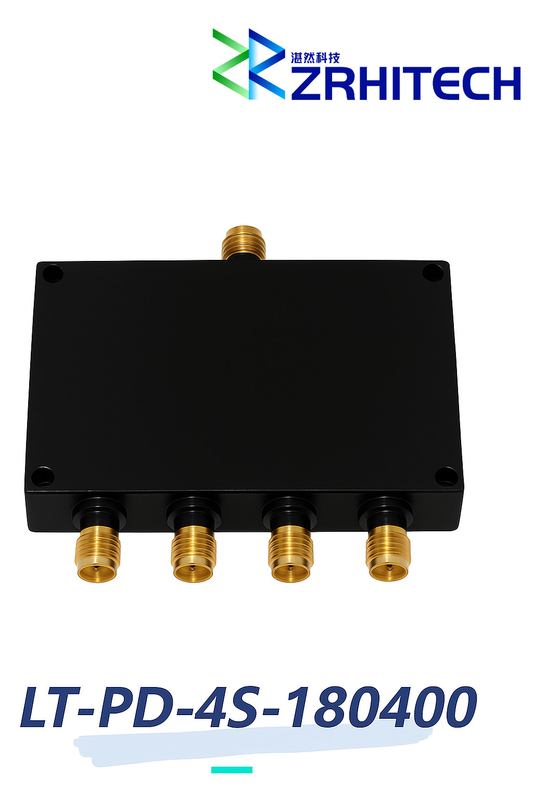

18 to 40 GHz 20 Watt LT-PD Series 4-Way Power Divider

Quick Detail:

4-Way Power Divider
Stripline Design
-55℃ to +85℃ operating temperature
18 to 40 GHz Frequency Range
Max Power 20 Watt
Insertion Loss < 2.4 dB
Isolation > 18 dB
CE, RoHS, REACH compliant
1 Year Warranty

Description:

The LT-PD-4S-180400 from ZR is a high-performance 4-way power divider operating from 18 to 40 GHz. Capable of handling up to 20 Watt (CW) with maximum insertion loss of 2.4 dB and minimum isolation of 18 dB. The unit features 2.92mm-Female connectors and complies with REACH and RoHS environmental standards.

Specifications:

Items	Specification	Conditions
Part Number	LT-PD-4S-180400
Frequency Range	18 to 40 GHz
Impedance	50 Ohms
Input VSWR	1.7:1 Max.
Output VSWR	1.7:1 Max.
Insertion Loss	2.4 dB Max.	Excluding Nominal Splitter Loss 3.0dB
Isolation	18 dB Max.
Amplitude Balance	1.0 dB Max.
Phase Balance	10 Degrees Max.
Input Power	20 kW
Connectors	2.92mm-Female
Dimension	38.1x52.3x12.7 mm

Note: for custom specifications, please contact us directly.
