Power Divider

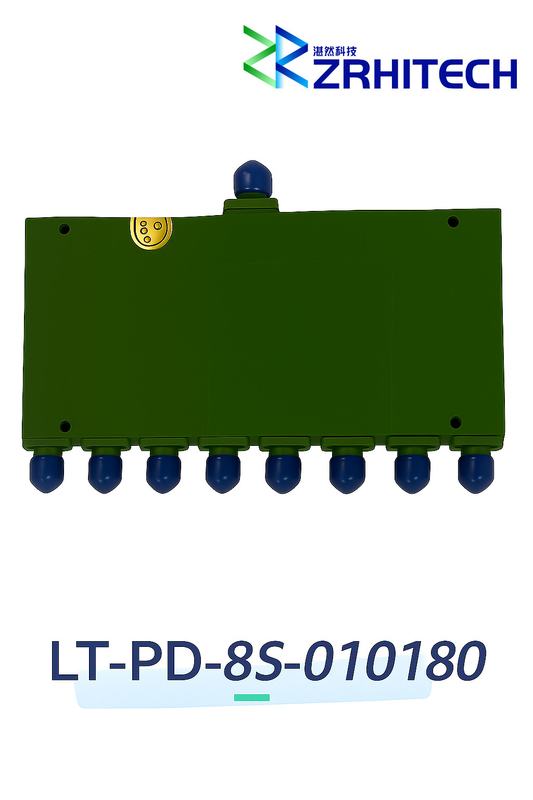

Created with Pixso. 1 to 18 GHz 20 Watt LT-PD Series 8-Way Power Divider
1 to 18 GHz 20 Watt LT-PD Series 8-Way Power Divider
  • name

1 to 18 GHz 20 Watt LT-PD Series 8-Way Power Divider

Brand Name: ZR Hi-tech
Model Number: LT-PD-8S-010180
MOQ: 1
Delivery Time: 4 weeks
Payment Terms: D/A,D/P,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Document:
Product Brochure PDF
Packaging Details:
carton packing
Product Description
1 to 18 GHz 20 Watt LT-PD Series 8-Way Power Divider
Quick Detail:
  • 8-Way Power Divider
  • Stripline Design
  • -55℃ to +85℃ operating temperature
  • 1 to 18 GHz Frequency Range
  • Max Power 20 Watt
  • Insertion Loss < 5.5 dB
  • Isolation > 16 dB
  • CE, RoHS, REACH compliant
  • 1 Year Warranty
Description:

The LT-PD-8S-010180 from ZR is an 8-way power divider that operates from 1 to 18 GHz and can handle up to 20 Watt (CW) with 5.5 dB max insertion loss and 16 dB min isolation. The package interface uses SMA-Female connectors and is REACH and RoHS compliant.

Specifications:
Items Specification Conditions
Part Number LT-PD-8S-010180
Frequency Range 1 to 18 GHz
Impedance 50 Ohms
Input VSWR 1.6:1 Max.
Output VSWR 1.6:1 Max.
Insertion Loss 5.5 dB Max. Excluding Nominal Splitter Loss 3.0dB
Isolation 16 dB Min.
Amplitude Balance 1.2 dB Max.
Phase Balance 12 Degrees Max.
Input Power 20 kW
Connectors SMA-Female
Dimension 110x120x12.7 mm
Note: for custom specs, please contact us directly.
