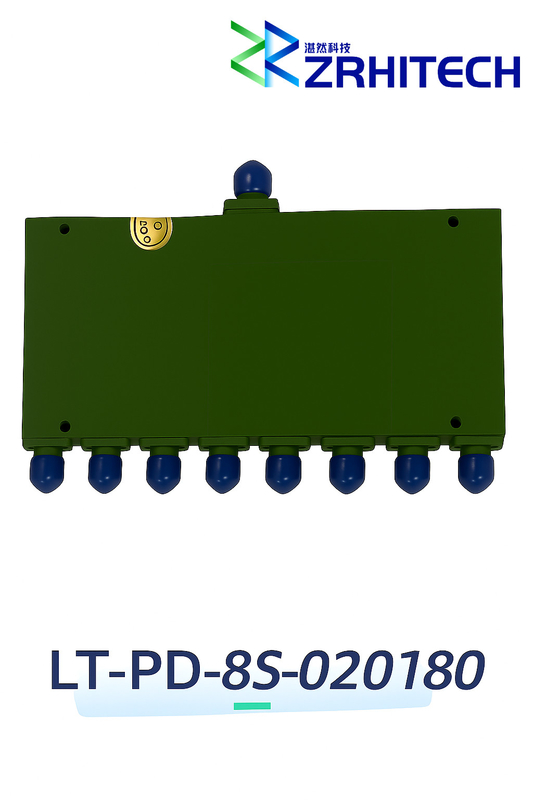

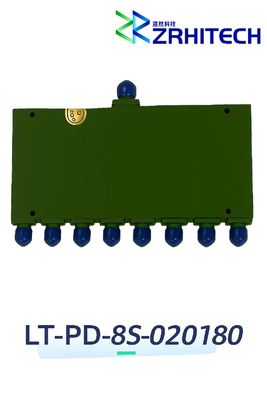

2 to 18 GHz 20 Watt LT-PD Series 8-Way Power Divider

Name: 2 to 18 GHz 20 Watt LT-PD Series 8-Way Power Divider
Brand: Sichuan ZR Hi-Tech Ltd.
SKU: LT-PD-8S-020180
Availability: InStock

Brand Name:	ZR Hi-tech
Model Number:	LT-PD-8S-020180
MOQ:	1
Delivery Time:	4 weeks
Payment Terms:	D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Document:

Product Brochure PDF

Packaging Details:

carton packing

Highlight:

2 to 18 GHz Power Divider

Product Description

2 to 18 GHz 20 Watt LT-PD Series 8-Way Power Divider

Product Overview

The LT-PD-8S-020180 is a high-performance 8-way power divider operating from 2 to 18 GHz frequency range with 20 Watt maximum power handling capability.

Key Features

8-Way power division with stripline design
Broad frequency range: 2 to 18 GHz
High power handling: 20 Watt maximum
Low insertion loss: < 3.2 dB
Excellent isolation: > 16 dB
Wide operating temperature: -55℃ to +85℃
Standard SMA-Female connectors
Compliance with CE, RoHS, and REACH standards
1-year manufacturer warranty

Technical Specifications

Parameter	Specification	Conditions
Part Number	LT-PD-8S-020180
Frequency Range	2 to 18 GHz
Impedance	50 Ohms
Input VSWR	1.5:1 Max.
Output VSWR	1.5:1 Max.
Insertion Loss	3.2 dB Max.	Excluding Nominal Splitter Loss 3.0dB
Isolation	16 dB Min.
Amplitude Balance	0.8 dB Max.
Phase Balance	10 Degrees Max.
Input Power	20 kW
Connectors	SMA-Female
Dimensions	88.9 × 132.1 × 12.7 mm

Outline Drawing

Note: Custom specifications are available upon request. Please contact us directly for specialized requirements.
