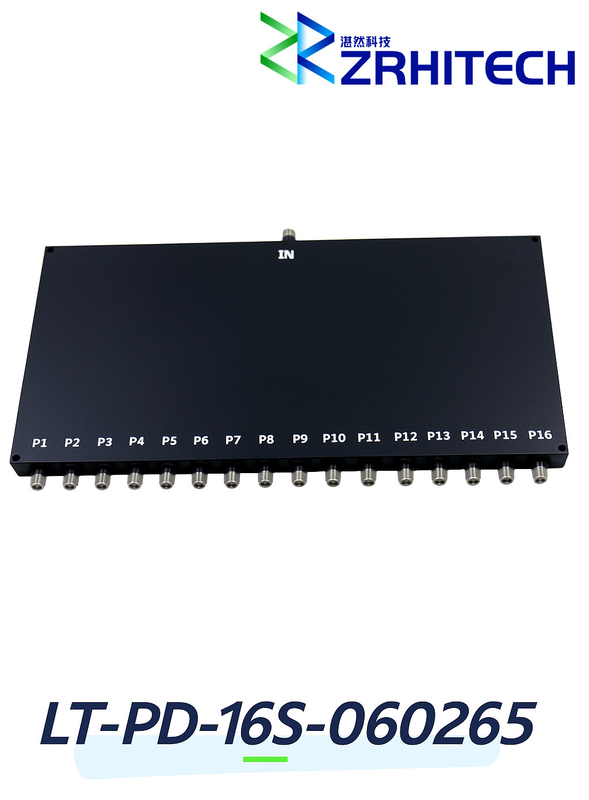

6 to 26.5 GHz 20 Watt LT-PD Series 16-Way Power Divider
6 to 26.5 GHz 20 Watt LT-PD Series 16-Way Power Divider
Quick Detail:
- 16-Way Power Divider
- Stripline Design
- -55℃ to +85℃ operating temperature
- 6 to 26.5 GHz Frequency Range
- Max Power 20 Watt
- Insertion Loss < 4.4 dB
- Isolation > 16 dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-PD-16S-060265 from ZR is a high-performance 16-way power divider operating from 6 to 26.5 GHz. Capable of handling up to 20 Watt (CW) with maximum insertion loss of 4.4 dB and minimum isolation of 16 dB. The unit features SMA-Female connectors and complies with REACH and RoHS standards.
Specifications:
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-16S-060265 | |
| Frequency Range | 6 to 26.5 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.7:1 Max. | |
| Output VSWR | 1.7:1 Max. | |
| Insertion Loss | 4.4 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 16 dB Min. | |
| Amplitude Balance | 1.4 dB Max. | |
| Phase Balance | 16 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | SMA-Female | |
| Dimension | 44.5x210x12.7 mm |
Note: for custom specs, please contact us directly.
Outline Drawing:
