6 to 40 GHz Power Divider
-
Place of OriginCHINA
-
Brand NameZR Hi-tech
-
Model NumberLT-PD-16S-060400
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T

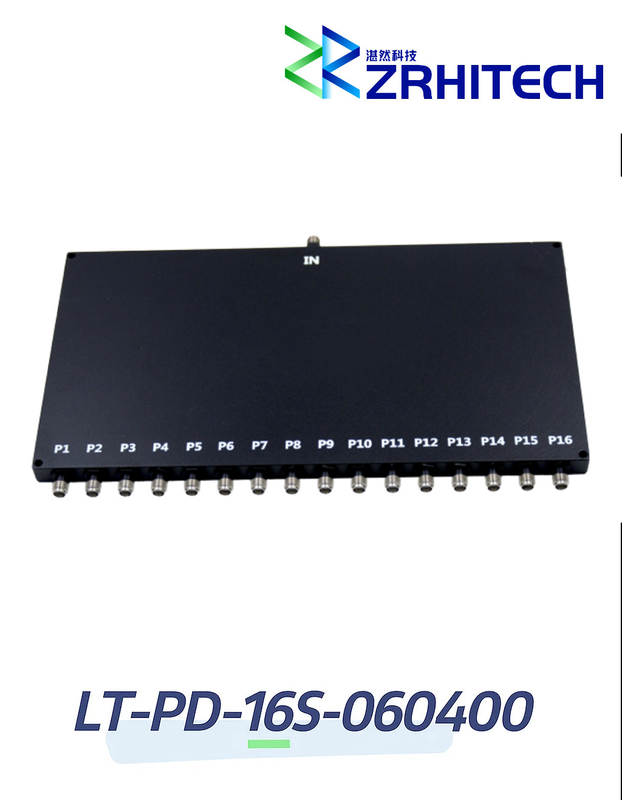

6 to 40 GHz 20 Watt LT-PD Series 16-Way Power Divider
6 to 40 GHz 16-Way Power Divider
Quick Detail:
· 16-Way Power Divider
· Stripline Design
· -55℃~+85℃ operating temperature
· 6 to 40 GHz Frequency Range
· Max Power 20 Watt
· Insertion Loss < 5.5 dB
· Isolation > 16 dB
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-PD-16S-060400 from ZR is a 16-way power divider that operates from 6 to 40 GHz and can handle up to 20 Watt (CW) with 5.5 dB max insertion loss and 16 dB min isolation,The package interface uses 2.92mm-Female connectors and is REACH and RoHS compliant.More details for LT-PD-16S-060400 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
|
Items |
Specification |
Conditions |
|
Part Number |
LT-PD-16S-060400 |
|
|
Frequency Range |
6 to 40 GHz |
|
|
Impedance |
50 Ohms |
|
|
Input VSWR |
1.8:1 Max. |
|
|
Output VSWR |
1.8:1 Max. |
|
|
Insertion Loss |
5.5 dB Max. |
Excluding Nominal Splitter Loss 3.0dB |
|
Isolation |
16 dB Min. |
|
|
Amplitude Balance |
1.6 dB Max. |
|
|
Phase Balance |
18 Degrees Max. |
|
|
Input Power |
20 kW |
|
|
Connectors |
2.92mm-Female |
|
|
Dimension |
44.5x210x12.7 mm |
|
|
Note: for custom specs, please contact us directly. |
||
Outline Drawing (Unit: mm):
