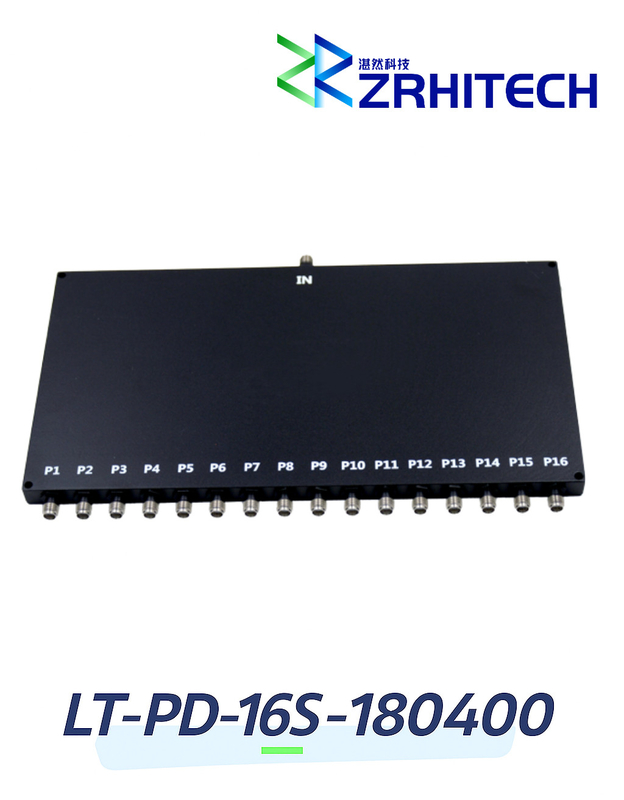

18 to 40 GHz 20 Watt LT-PD Series 16-Way Power Divider
18 to 40 GHz 20 Watt LT-PD Series 16-Way Power Divider
Quick Detail:
- 16-Way Power Divider
- Stripline Design
- -55℃ to +85℃ operating temperature
- 18 to 40 GHz Frequency Range
- Max Power 20 Watt
- Insertion Loss < 5.0 dB
- Isolation > 17 dB
- CE, RoHS, REACH compliant
- 1 Year Warranty
Description:
The LT-PD-16S-180400 from ZR is a 16-way power divider that operates from 18 to 40 GHz and can handle up to 20 Watt (CW) with 5.0 dB max insertion loss and 17 dB min isolation. The package interface uses 2.92mm-Female connectors and is REACH and RoHS compliant.
Specifications:
| Items | Specification | Conditions |
|---|---|---|
| Part Number | LT-PD-16S-180400 | |
| Frequency Range | 18 to 40 GHz | |
| Impedance | 50 Ohms | |
| Input VSWR | 1.8:1 Max. | |
| Output VSWR | 1.8:1 Max. | |
| Insertion Loss | 5.0 dB Max. | Excluding Nominal Splitter Loss 3.0dB |
| Isolation | 17 dB Min. | |
| Amplitude Balance | 1.2 dB Max. | |
| Phase Balance | 12 Degrees Max. | |
| Input Power | 20 kW | |
| Connectors | 2.92mm-Female | |
| Dimension | 36x210x12.7 mm |
Note: for custom specs, please contact us directly.
Outline Drawing:
