Wireless Communication SAW Band Pass Filter
,Small Size SAW Band Pass Filter
,1697MHz SAW Band Pass Filter
-
FeaturesHigh Rejection
-
Product NameLT-SF Series RF SAW Filter
-
ApplicationWireless Communication
-
MaterialAluminum
-
Temperature-40~85℃
-
Frequency Range1696 To 1698 MHz
-
ColorSilver
-
Low Insertion Loss4.3 To 5.0 DB
-
Place of OriginCHINA
-
Brand NameZR Hi-Tech
-
Model NumberLT-SF-1697M-2M-3030
-
Document
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsT/T

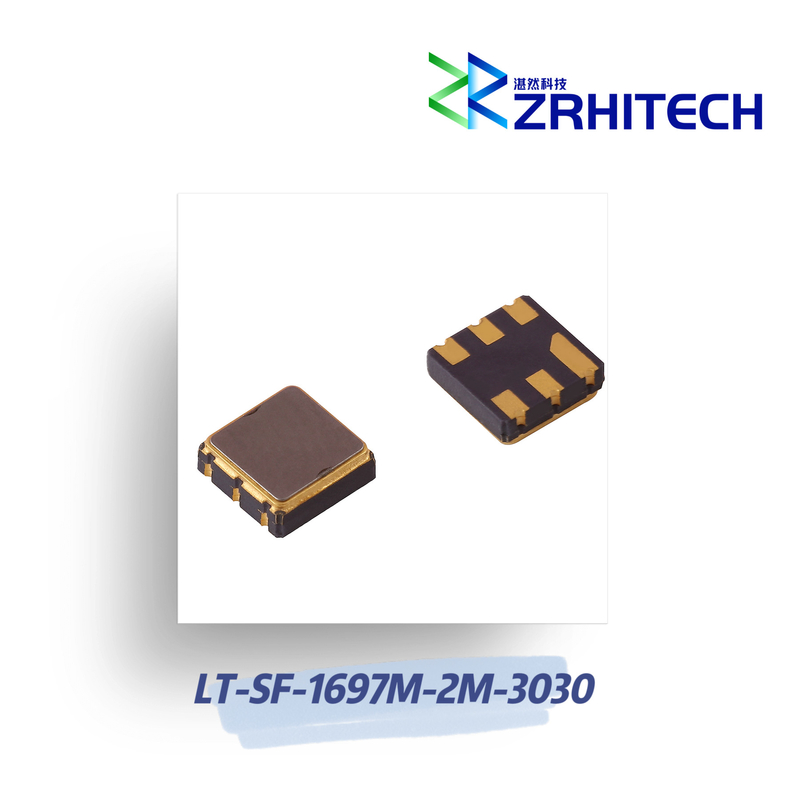

Small Size 1697MHz RF SAW Band Pass Filter for Wireless Communication
1697MHz LT-SF series RF SAW Band Pass Filter
Quick Detail:
· Aluminum housing
· Customizable Frequency
· -40℃~+85℃ operating temperature
· Surface Mount
· Small Size
· Low cost
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-SF-1697M-2M-3030 from ZR is a Band Pass Filter with Frequency 1696 to 1698 MHz, Bandwidth 2 MHz, Center Frequency 1697 MHz, Insertion Loss 4.3 to 5.0 dB, Rejection 41 dB. Tags: Surface Mount, RF SAW Filter. This filter is widely used in various Wireless Communication.More details for LT-SF-1697M-2M-3030 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
| Items | Specification | Conditions |
| Part Number | LT-SF-1697M-2M-3030 | |
| Center Frequency | 1697MHz | |
| Insertion Loss | ||
|
Insertion Loss (1696.00 to 1698.00MHz) |
5.0dB Max.; 4.3dB Typ. | |
| Ripple in Bandwidth | 1.0dB Max.;0.5dB Typ. | |
| 3dB Bandwidth | 22MHz Typ. | |
| 1dB Bandwidth | 17MHz Typ. | |
| Group Delay Variation | ||
| Input VSWR | 2.0:1 Max.;1.8:1 Typ. | |
| Output VSWR | 2.0:1 Max.;1.8:1 Typ. | |
| Attenuation | 41dB Min.@1577-1626MHz | |
| Dimension | 3x3x1.25mm | |
| Note: for custom specs, please contact us directly. | ||
